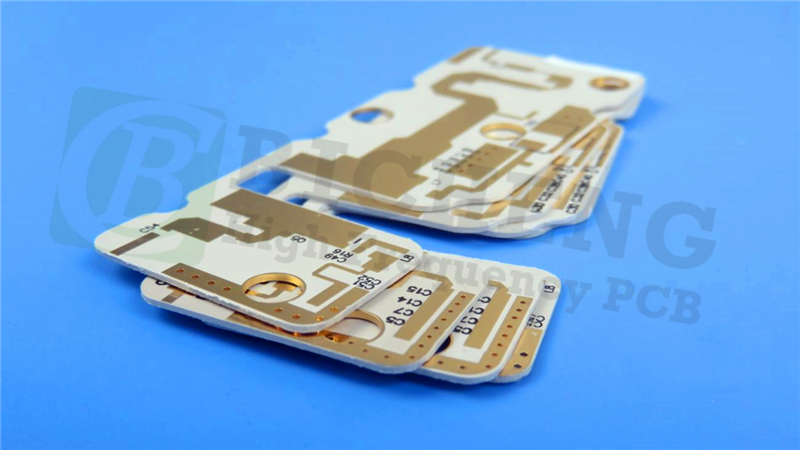

RO3006 High Frequency PCB
|
|
|
|
|
|
Introduction |
|
|
RO3006 circuit materials are specifically developed for high frequency applications in commercial microwave and RF systems. These materials are composed of ceramic-filled PTFE composites and are designed to provide outstanding electrical and mechanical stability at competitive prices. The advanced nature of RO3006 circuit materials ensures a consistent dielectric constant (Dk) across a wide temperature range, eliminating the abrupt change in Dk typically observed in PTFE glass materials near room temperature. |
|
|
|
|
|

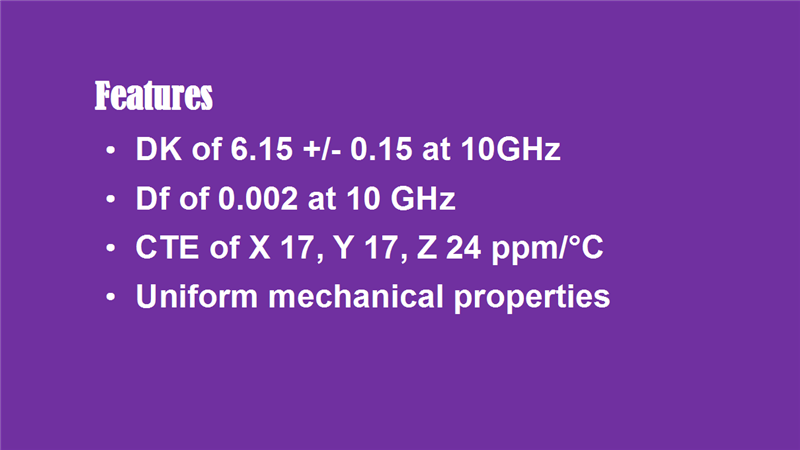

Features |
|
|
RO3006 offers a dielectric constant (Dk) of 6.15 +/- 0.15, ensuring reliable signal transmission and precise impedance control. |
|
|
|
|
|
With a dissipation factor of 0.0020 at 10 GHz, RO3006 facilitates low signal loss, making it ideal for high-frequency designs. |
|
|
|
|
|
Moreover, RO3006 features an impressively low coefficient of thermal expansion (CTE) across the X, Y, and Z axes, measuring at 17, 17, and 24 ppm/°C respectively. This characteristic ensures excellent dimensional stability and minimizes phase shift, even when subjected to varying temperature conditions |
|
|
|
|
|
The uniform mechanical properties shared with other laminates in the RO3000 Series facilitate seamless integration into multi-layer board designs, promoting compatibility and ease of?fabrication. |
|
|
|
|
|
|
|
|
|
|
|
PCB Capability |
|
|
Our manufacturing capabilities include single-sided, double-sided PCBs, multilayer PCBs, and hybrid PCBs, allowing flexibility in accommodating various design requirements. |
|
|
|
|
|
We offer copper weight options of 1oz (35µm) and 2oz (70µm), providing choices to meet specific conductivity needs. |
|
|
|
|
|
Laminate thickness options range from 5mil (0.127mm), 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), up to 60mil (1.524mm), ensuring versatility for different applications. |
|
|
|
|
|
The maximum size we support for PCBs is 400mm X 500mm, enabling the realization of larger designs. |
|
|
|
|
|
We offer a range of solder mask colors, including green, black, blue, yellow, red, and more, allowing customization to suit specific requirements. |
|
|
|
|
|
When it comes to surface finish, we offer multiple options, including immersion gold, HASL, immersion silver, immersion tin, ENEPIG, bare copper, OSP, pure thick gold and so on. |
|
|
|
|
|
| |
PCB Capability (RO3006) |
PCB Material: |
Ceramic-filled PTFE Composites |
Designation: |
RO3006 |
Dielectric constant: |
6.15 |
Dissipation Factor |
0.002 10GHz |
Layer count: |
Single Sided, Double Sided PCB, Multilayer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Laminate thickness: |
5mil(0.127mm), 10mil(0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil (1.524mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, ENEPIG, Pure gold plated etc.. |
|
|
|
|
|
|
|
Applications |
|
|
RO3006 PCB finds application in various fields, including:
Automotive radar systems
Global positioning satellite (GPS) antennas
Power amplifiers and antennas in cellular telecommunications systems
Patch antennas for wireless communications
Direct broadcast satellites and so on. |
|
|
|
|
|
Thank you. I’ll see you next time. |
|
|
|
|
|
|
|
|
|
|
|
|
