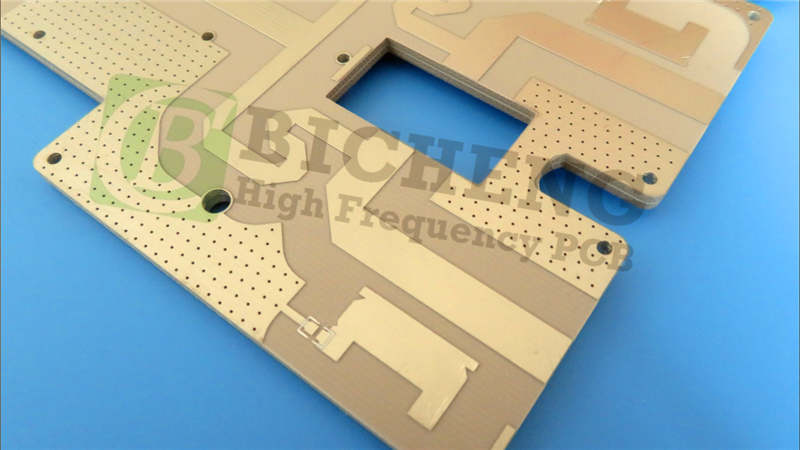

RT/duroid 6002 High Frequency PCB
|
|
|
|
|
|
Introduction |
|
|
Rogers RT/duroid 6002 laminates are advanced microwave materials that combine ceramic-filled PTFE with low loss and low dielectric constant. They are specifically designed for complex microwave structures. These laminates exhibit exceptional mechanical and electrical properties, making them highly reliable for use in multi-layer board constructions. |
|
|
|
|
|

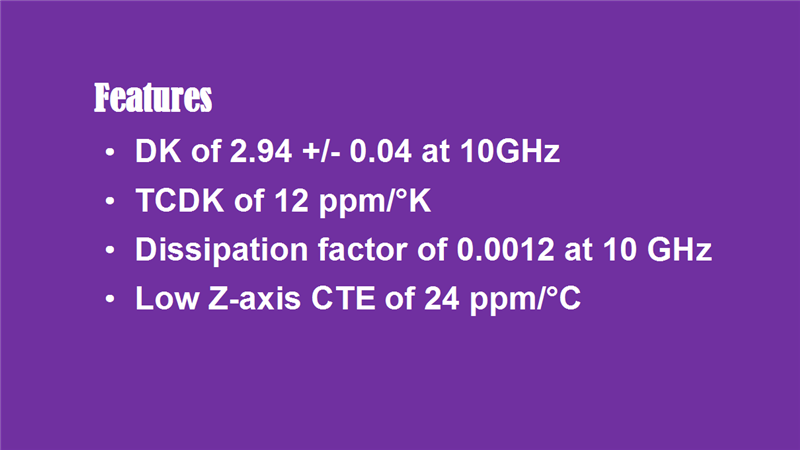

Features |
|
|
RT/duroid 6002 laminates have a dielectric constant of 2.94, with a tolerance of +/- .04. This property is important for maintaining signal integrity in microwave applications. |
|
|
|
|
|
These laminates exhibit a low thermal coefficient of Dk, measuring at 12 ppm/°C. This ensures the dielectric constant remains stable over a wide temperature range, minimizing any variations in electrical performance. |
|
|
|
|
|
The dissipation factor, or loss tangent, of the RT/duroid 6002 laminates is .0012 at a frequency of 10 GHz. This indicates the material's ability to minimize signal loss and maintain high signal quality, ensuring efficient transmission of microwave signals. |
|
|
|
|
|
These laminates also possess a low Z-axis coefficient of thermal expansion, measuring at 24 ppm/°C. This characteristic indicates the material's stability and resistance to dimensional changes when exposed to temperature variations, reducing the risk of warping or delamination in multi-layer board constructions. |
|
|
|
|
|
|
|
|
PCB Capability |
|
|
Our PCB manufacturing capabilities on RT/duroid 6002 material encompass the following: |
|
|
|
|
|
We offer flexibility in layer count, ranging from 1-layer, 2-layer, to multi-layer and hybrid designs. |
|
|
|
|
|
Our capabilities include accommodating copper weights of 1oz (35µm) and 2oz (70µm). This provides options to suit specific design and application requirements. |
|
|
|
|
|
We offer a range of PCB thickness options to cater to different needs. This includes 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm), and 120mil (3.048mm). |
|
|
|
|
|
Our manufacturing capabilities support PCB sizes up to a maximum of 400mm X 500mm. This provides ample space for accommodating diverse PCB designs, allowing for larger and more complex circuitry. |
|
|
|
|
|
We offer a selection of solder mask colors, including Green, Black, Blue, Yellow, Red, and more. |
|
|
|
|
|
Our capabilities include various surface finish options to meet different requirements. These options comprise Bare copper, HASL, ENIG, Immersion Silver, Immersion tin, Pure gold (with no nickel under gold), ENEPIG, OSP and so on. |
|
|
|
|
|
| |
PCB Capability (RT/duroid 6002) |
PCB Material: |
Ceramic-filled PTFE composite |
Designation: |
RT/duroid 6002 |
Dielectric constant: |
2.94 ±0.04 (process) |
2.94 (design) |
Layer count: |
1-layer, 2-layer, multi-layer, hybrid design |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB thickness: |
10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm), 120mil (3.048mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immserion Silver, Immersion tin, Pure gold, ENEPIG, OSP etc.. |
|
|
|
|
|
|
|
Applications |
|
|
RT/duroid 6002 High Frequency PCBs find widespread application in various fields, including Phased Array Antennas, Ground Based and Airborne Radar Systems, Global Positioning System Antennas, Power Backplanes, Commercial Airline Collision Avoidance, and more. |
|
|
|
|
|
Thank you. I’ll see you next time. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
