1. Definition of Specific Gravity

In the field of high-frequency PCBs, specific gravity is a crucial and specialized physical parameter. It specifically refers to the ratio of the mass of a PCB material to its occupied volume, which directly reflects the material's density characteristics and the performance it exhibits as a result.

2.1 Basis for Performance Evaluation

Specific gravity serves as the foundation for evaluating the performance of PCB materials, influencing the material's microstructure, dielectric, and conductive properties.

2.2 Signal Transmission Quality

Specific gravity indirectly affects the transmission quality and efficiency of high-frequency signals, making it a key factor in ensuring signal transmission quality.

2.3 Overall PCB Performance

Changes in specific gravity can impact the overall performance of a PCB, such as thermal stability and reliability, which must be fully considered during design and manufacturing.

3. Measures to Optimize Specific Gravity

3.1 Adjust Material Composition

By precisely controlling the proportions of the components in the material, the density and specific gravity of the material can be altered. For example, increasing the content of high-density components can enhance the material's specific gravity.

3.2 Improve Production Processes

Optimizing production process parameters, such as temperature, pressure, and time, can influence the microstructure and performance of the material, thereby enabling the regulation of specific gravity.

3.3 Introduce New Materials

Researching and applying new high-performance PCB materials, such as those with low dielectric constants and low loss tangent values, can maintain stable specific gravity while improving the overall performance of the PCB.

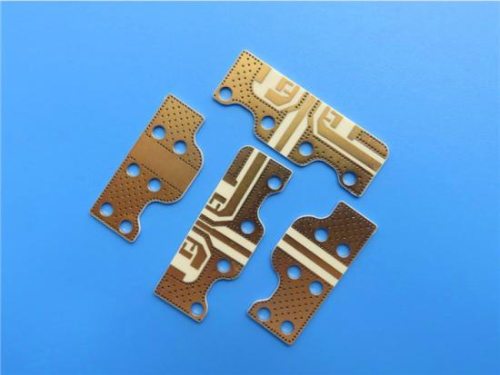

When discussing the specific gravity, Rogers AD1000 high-frequency PCB immediately comes to my mind. AD1000 is a composite laminate material reinforced with glass cloth and filled with PTFE/ceramic. By optimizing the filler ratio and manufacturing process, it achieves a relatively lightweight while maintaining high strength and stability. Despite having a higher dielectric constant of 10.2, its specific gravity is well-controlled due to its unique material composition and structure. Let us examine the comparison and data-supported analysis of the specific gravity of Rogers AD1000 subatrate and other materials.

4-1. Rogers AD1000 PCB

Specific Gravity Consistency

Traditional composites have large specific-gravity deviations. In electronic device production, theirs is ±5%, while Rogers AD1000 PCB, with strict manufacturing, controls it within ±0.5%, reducing signal-transmission error rate by ~80%.

Environmental Adaptability

From -40°C to 80°C, traditional composites' specific gravity changes over 10%, affecting component performance. Rogers AD1000 subatrate 's changes less than 2%. For car engine nearby components, using it keeps performance attenuation rate within 5%, vs 20% for traditional ones.

Adaptability in Mixed Materials

Making new building materials, traditional composites mix poorly with lightweight aggregates. Rogers AD1000 laminate distributes evenly, boosting mixed material uniformity by ~60%.

4.2 Comparison with Ceramic Materials

Specific Gravity Consistency

Ceramic materials' different batches have ~±1% specific-gravity deviation. Rogers AD1000 subatrate, through strict control, has better consistency, suitable for high-end comm. equipment filters.

Environmental Adaptability

At -50°C, alumina ceramics' specific gravity increases ~1.5%. Rogers AD1000 laminate 's changes little at low temps, ensuring normal operation and stable performance in polar research electronics.

Adaptability in Mixed Materials

Ceramic and organic polymer materials mix poorly. Rogers AD1000 PCB mixes well with epoxy resins etc., improving overall performance in electronic packaging.

Let's further explore other important characteristics of Rogers AD1000 laminate in terms of specific gravity.

The AD1000 PCB excels in various applications, specifically but not limited to:

• X-Band and Below Applications

• Radar Modules and Manifolds

• Aircraft Collision Avoidance Systems (TCAS)

• Ground-Based Radar Surveillance Systems

• Miniaturized Circuitry & Patch Antennas

• Power Amplifiers (PAs)

• Low Noise Amplifiers (LNAs)

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen, China, serving customers worldwide.

We are devoted to delivering high-frequency PCB products and solutions of the highest quality, along with customized service. Feel free to consult and contant at any time !

Visit https://www.bicheng-enterprise.com to learn more.

Unlock its full potential by contacting Vicky at v.xie@bichengpcb.com.
