What is Flexural Strength in High Frequency PCB? |
|
|
|
| |
|
1. The Meaning of Flexural Strength |
|
|
|
| |
|
Flexural strength refers to the ability of a PCB to withstand bending forces without breaking or deforming. It is a fundamental property that ensures the physical integrity of the PCB during handling, installation, and operation. |
|
|
| |
|
|
|
|
| |
|
2. The Importance of Flexural Strength |
|
|
| |
|
Adequate flexural strength is vital for the durability and functionality of high frequency PCBs. It safeguards the delicate circuitry and components, preventing damage that could lead to signal loss or malfunction. Without it, the PCB may fail to perform optimally, affecting the overall performance of the electronic device it is a part of. |
|
|
| |
|
|
|
|
| |
|
3. Improvement Measures |
|
|
| |
|
3.1 Material Upgrade
Select advanced materials with excellent mechanical properties, such as high-performance substrates and high-quality copper foils, to strengthen the foundation of the PCB's flexural strength.
|
|
|
| |
|
|
|
|
| |
|
3.2 Design Optimization
Evenly distribute components and traces, avoid uneven layouts and complicated routing. It is advisable to appropriately increase the thickness or adopt a multilayer board structure to disperse stress and improve the flexural performance. |
|
|
| |
|
|
|
|
| |
|
3.3 Process Improvement
Precise control of curing parameters, ensure lamination quality for defect-free close bonding of layers and strengthen interlayer bonding force. Conduct strict quality inspections to meet high PCB quality standards and facilitate high-frequency PCB application in electronics. |
|
|
| |
|
|
|
|
| |
|
4.General Introduction of Wangling F4BM265 PCB |
|
|
| |
|
Speaking of the flexural strength in PCBs, Wangling F4BM265 high-frequency PCB springs to my mind. Let's delve into the key details of this remarkable product. |
|
|
| |
|
|
|
|
| |
|
4.1 Benefits of F4BM265 Laminate |
|
|
| |
|
- Stable DK: dielectric constant of 2.65 at 10GHz
- Low Loss: Dissipation Factor of 0.0013 at 10GHz
- Excellent PIM Performance: When paired with RTF copper foil
- Diverse Sizes: Cost-effective options available
- Radiation Resistance: Low outgassing properties
- Commercially Available: High volume production with excellent cost-performance ratio.
|
|
|
| |
|
|
|
|
| |
|

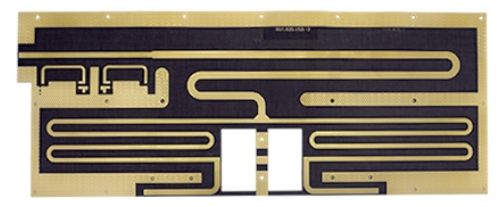

4-1. F4BM Material |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
4.2 Advantages of F4BM265 PCB in Flexural Strength |
|
|
| |
|
- Material Composition and Structure
Taconic F4BM265 PCB is manufactured by pressing glass cloth, prepregs, and PTFE resin. The glass cloth plays a significant role in enhancing the strength. The resin combines tightly with the fibers, which allows the stress to be distributed evenly. This combination effectively improves the tensile strength of the material.
The advanced pressing technique guarantees that all the materials are thoroughly integrated and compacted. This process reduces the occurrence of pores and defects, leading to an increase in density and uniformity. As a result, the tensile ability of the material is enhanced.
Stringent quality control measures are implemented. These ensure the consistency and stability of the product. By maintaining strict quality standards, the tensile strength of Taconic F4BM265 is kept at a relatively high level.
This material is widely used in various fields such as phase shifters and passive components. In complex environments like satellite communications and base station antennas, it can endure external tensile forces. This ability ensures the reliability and stability of the equipment.
In high-frequency signal transmission circuits, it meets the requirements for circuit integrity. It prevents signal issues that might be caused by tensile deformation, thus guaranteeing the normal operation of high-frequency circuits. |
|
|
| |
|
|
|
|
| |
|
4-2. Key Specifications of 2-layer F4BM265 Sunstrate |
|
|
| |
|
PCB Construction Details |
Specifications |
Board Dimensions |
45.33mm x 50.2mm (1PCS), +/- 0.15mm |
Minimum Trace/Space |
5/5 mils |
Minimum Hole Size |
0.5mm |
Finished Board Thickness |
3.1mm |
Finished Cu Weight |
1oz (1.4 mils) on outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
HASL Lead Free |
Top Silkscreen |
White |
Top Solder Mask |
Black |
Electrical Test |
100% Electrical test prior to shipment |
|
|
|
| |
|
|
|
|
| |
|
5. Wrap-Up |
|
|
| |
|
In conclusion, flexural strength is the linchpin of high-frequency PCBs. It acts as a guardian angel for the intricate circuitry, empowering PCBs to withstand mechanical stresses without breaking down. This ensures durability and reliability while safeguarding signal integrity and preventing malfunctions. |
|
|
| |
|
|
|
|
| |
|
