What is Flammability Rating in High Frequency PCB? |
|
|
|
|
|
1. Definition and Standards of the Flammability Rating |
|
|
|
|
|
In high-frequency PCBs, the flammability rating is an indicator that measures the burning characteristics of PCB materials."Flammability ratings are not just numbers; they represent a commitment to safety and performance in high-frequency PCB applications." A common standard for flammability ratings is UL 94. UL 94 is a standard developed by Underwriters Laboratories (UL) to evaluate the flammability of plastic materials. According to this standard, materials are classified into different flammability levels such as V-0, V-1, and V-2.
For example, V-0 rated materials are self-extinguishing, meaning that in vertical burning tests, the flame extinguishes within a specified time (usually 10 seconds), and there are no burning drops that could cause secondary ignition. V-1 rated materials have a longer extinguishment time under the same test conditions and allow for a small amount of burning drops. V-2 rated materials burn relatively quickly, and the presence of burning drops may be more pronounced. |
|
|
|
|
|
|
|
|
|
2. Importance of Flammability Rating |
|
|
|
|
Using PCBs with appropriate flammability ratings is crucial for safety in electronic devices, especially those that generate heat or operate in fire-prone environments, such as power modules and industrial control equipment. Low flammability ratings can lead to rapid fire spread, posing serious safety risks. Additionally, many countries have regulations that require PCB materials to meet specific flammability standards to ensure safety during normal use and in exceptional situations, like short circuits. |
|
|
|
|
|
|
|
|
|
3.Influencing Factors |
|
|
|
|
3.1Composition of Materials
The composition of materials is a key factor affecting flammability ratings. For high-frequency PCBs, the chemical composition of substrate materials (such as FR-4, PTFE, etc.) varies, which impacts their flammability. For instance, some FR-4 substrate materials that contain flame retardants may have higher flammability ratings compared to standard FR-4 materials.
3.2 Manufacturing Processes
Manufacturing processes also influence flammability ratings. For example, if the processing of PCBs, such as drilling and etching, is not handled properly, it can damage the flame-retardant layer on the material's surface or introduce flammable impurities, thereby reducing the material's flammability rating. |
|
|
|
|
|
|
|
|
|
4. Recommend Rogers RO4835 High - Frequency PCB |
|
|
|
|
Rogers RO4835 RF PCB utilize RoHS compliant flame-retardant technology for applications requiring UL 94V-0 certification. These materials also conform to the requirements of IPC-4103/11. RO4835 Substrates are a low loss material that offer low cost circuit fabrication, compatible with standard epoxy/glass (FR-4) processes. These laminates are available with Rogers proprietary LoPro Reverse treated copper foil, ideal for applications requiring low insertion loss.The following is a more detailed introduction and explanation of RO4835 PCB. |
|
|
|
|
|
|
|
|
|
4-1. PCB Capability (RO4835) |
|
|
|
|
PCB Capability (RO4835) |
PCB Material: |
Hydrocarbon Ceramic Laminates |
Layer count: |
Double Sided PCB, Multilayer PCB, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
Dielectric thickness (ED copper) |
6.6mil (0.168mm), 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm),60mil (1.524mm) |
Dielectric thickness (LoPro copper) |
4mil (0.102mm), 7.3mil (0.186mm), 10.7mil (0.272mm), 20.7mil (0.526mm), 30.7mil (0.780mm), 60.7mil (1.542mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold plated etc.. |
|
|
|
|
|
|
|
|
|
|
4.1 Features and Benefits |
|
|
|
|
Significantly improved oxidation resistance compared to traditional thermoset microwave materials, RO4835 PCB is designed for performance sensitive, high volume applications.
Low loss(DF of 0.0037 at 10 GHz)
• Excellent electrical performance allows application with higher operating frequencies.
• Ideal for automotive applications.
Tight dielectric constant tolerance (DK of 3.48 +/- 0.05)
• Controlled impedance transmission lines
Lead-free process compatible
• No blistering or delamination
Low Z-axis expansion
• Reliable plated through holes(PTH)
Low in-plane expansion coefficient
• Remains stable over an entire range of circuit processing temperatures
CAF resistant |
|
|
|
|
|
|
|
|
|

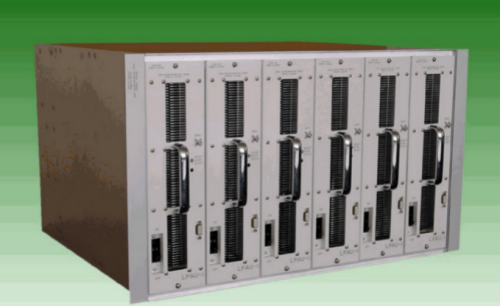

4.2 Typical Applications |
|
|
|
|
• Automotive Radar and Sensors
• Point-to point Microwave
• Power Amplifiers
• Phased - Array Radar
• RF Components |
|
|
|
|
|
|
|
|
|
.png)
|
|
|
|
|
|
|
|
|
|
5. Recap |
|
|
|
|
It is crucial to be extremely cautious when selecting the appropriate flammability rating for high-frequency PCBs. As the saying goes,"In high-frequency applications, flammability ratings safeguard not only the circuit but also the end-user." |
|
|
|
|
|
|
|
|
|
