RT/duroid 5870 High Frequency PCB
|
|
|
|
| |
|
Shot 1: brief introduction |
|
|
|
| |
|
Rogers RT/duroid 5870 high frequency laminates are PTFE composites reinforced with glass microfibers, specifically engineered for the precise demands of stripline and microstrip circuit applications. These composites possess exceptional dielectric constant uniformity due to the presence of randomly oriented microfibers.
RT/duroid 5870 laminates offer high frequency with low dielectric constant (Dk), making them well suited for high frequency/broadband applications where dispersion and losses need to be minimized. Moreover, their low dissipation factor expands the utility to frequencies in the Ku-band and above. |
|
|
| |
|
|
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|
Shot 2: Features |
|
|
| |
|
RT/duroid 5870 exhibits a low dielectric constant of 2.33 and a low dissipation factor of 0.0012, verified at 10 GHz.
Due to its PTFE properties, the material demonstrates minimal moisture absorption, as low as 0.02%. This characteristic makes it an ideal choice for environments with high moisture content.
Furthermore, RT/duroid 5870 showcases the lowest electrical loss among reinforced PTFE materials, possesses isotropic properties with uniform electrical characteristics across a range of frequencies, and exhibits excellent resistance to various chemicals. |
|
|
| |
|
|
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|
Shot 3: PCB Capability |
|
|
| |
|
Our offerings for RT/duroid 5870 PCBs encompass single layer boards, double layer boards, multi-layer boards, and hybrid types.
These PCBs come in a wide range of thicknesses, including standard options such as 10 mils, 15 mils, 20 mils, 31 mils, and 62 mils, among others.
The finished copper on the PCBs is available in 1oz and 2oz options.
Our maximum high frequency PCB size can be 400mm by 500mm, accommodating both single boards and multiple designs on a single panel.
We offer a variety of solder mask colors, such as green, black, blue, red and yellow etc.
For surface finishes, immersion gold, HASL, immersion silver, immersion tin, ENEPIG, pure gold, OSP and bare copper are available. |
|
|
| |
|
|
|
|
| |
|
PCB Capability (RT/duroid 5870) |
PCB Material: |
Glass Microfiber Reinforced PTFE Composites |
Designation: |
RT/duroid 5870 |
Dielectric constant: |
2.33 ± 0.02 at 10GHz |
Dissipation Factor |
0.0012 at 10GHz |
Layer count: |
Single layer, Double layer, Multi-layer PCB, Hybrid PCB |
Laminate thickness: |
5mil (0.127mm), 10mil (0.254mm), 20mil (0.508mm), 31mil (0.787mm), 62mil (1.575mm ) |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Red, Yellow etc. |
Surface finish: |
Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, Pure gold, OSP, Bare copper etc.. |
|
|
|
| |
|
|
|
|
| |
|

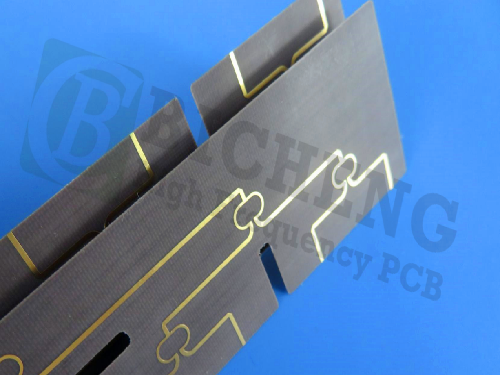

Shot 4: Applications |
|
|
| |
|
The versatility of RT/duroid 5870 makes it well-suited for various applications, including commercial airline broadband antennas, microstrip and stripline circuits, millimeter wave applications, military radar systems, missile guidance systems, and point-to-point digital radio antennas etc.
Thank you. I’ll see you next time. |
|
|
| |
|
|
|
|
| |
|
