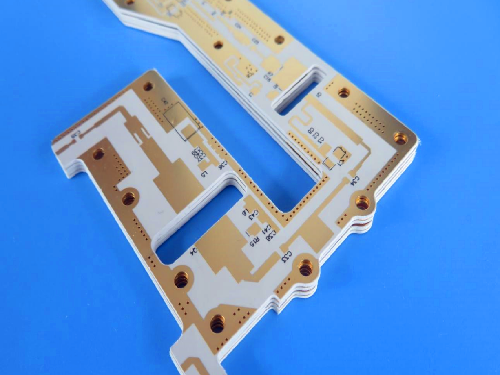

RT/duroid 6035HTC High Frequency PCB
|
|
|
|
| |
|
Shot 1: brief introduction |
|
|
|
| |
|
Rogers RT/duroid 6035HTC high frequency circuit materials are ceramic filled PTFE composites for use in high power RF and microwave applications. It offers outstanding performance for high-power applications. These laminates exhibit a thermal conductivity nearly 2.4 times higher than the standard RT/duroid 6000 products. They feature copper foil (ED and reverse treated) with exceptional long-term thermal stability. Moreover, Rogers' advanced filler system enhances drill-ability, resulting in reduced drilling expenses compared to conventional high thermally conductive laminates that utilize alumina fillers. |
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|

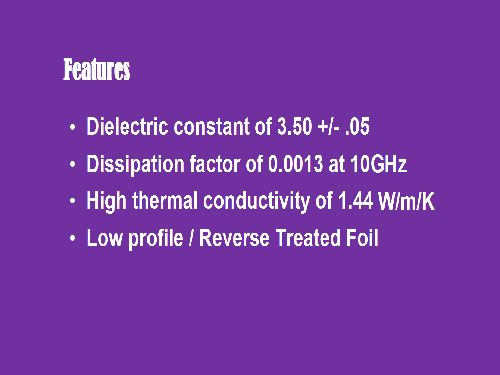

Shot 2: Features |
|
|
| |
|
RT/duroid 6035HTC offers a dielectric constant of 3.50 with precise tolerance of +/- .05, ensuring consistent and reliable operation.
It features a low dissipation factor of .0013 at 10GHz, minimizing signal loss and ensuring efficient signal transmission at high frequencies.
RT/duroid 6035HTC exhibits high thermal conductivity of 1.44 W/m/K at 80°C, enabling effective heat dissipation and temperature management, which is particularly advantageous for high-power applications.
Utilizing thermally stable low profile and reverse treat copper foil, RT/duroid 6035HTC exhibits reduced insertion loss, features excellent thermal stability of traces, maintaining stable electrical characteristics even under varying temperature conditions. |
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|
Shot 3: PCB Capability |
|
|
| |
|
We offer a wide range of PCB manufacturing capabilities to cater to your specific requirements
Layer count: We provide options for Single layer, double layer, Multi-layer and Hybrid PCBs.
Copper weight: 1oz (35 µm) and 2oz (35µm) are available.
Laminate thickness: There are 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), and 60mil (1.524mm) available, accommodating various design and mechanical constraints.
PCB size: Our maximum circuit dimensions are up to 400mm X 500mm, offering versatility for different project sizes.
Solder mask colors: It includes Green, Black, Blue, Yellow, Red, and more.
Surface finishes: Options including Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, Pure gold and OSP etc. |
|
|
| |
|
|
|
|
| |
|
PCB Capability (RT/duroid 6035HTC) |
PCB Material: |
Ceramic-filled PTFE composites |
Designation: |
RT/duroid 6035HTC |
Dielectric constant: |
3.50±0.05 |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
Laminate thickness: |
10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, Pure gold, OSP etc.. |
|
|
|
| |
|
|
|
|
| |
|
Shot 4: Applications |
|
|
| |
|
Shot 4: Applications
RT/duroid 6035HTC PCBs are well-suited for a range of applications in the field of high-power RF and microwave electronics. These applications include high-power RF amplifiers, microwave power amplifiers, couplers, filters, combiners, power dividers, and more.
Thank you, and see you next time! |
|
|
| |
|
|
|
|
| |
|
