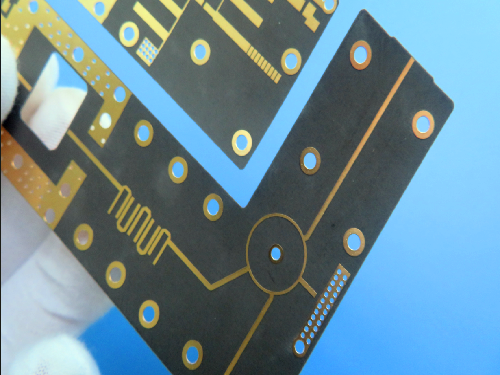

RT/duroid 5880 High Frequency PCB
|
|
|
|
| |
|
Shot 1: brief introduction |
|
|
|
| |
|
RT/duroid 5880 laminates are composite materials composed of PTFE and random glass fibers, known for their outstanding properties. They are specifically engineered for applications that demand high frequency and broadband capabilities. These laminates possess a low dielectric constant (Dk) and low dielectric loss, making them ideal for reliable and precise signal transmission. RT/duroid 5880 maintains Dk uniformity through randomly oriented microfibers that reinforce the PTFE composites. |
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|

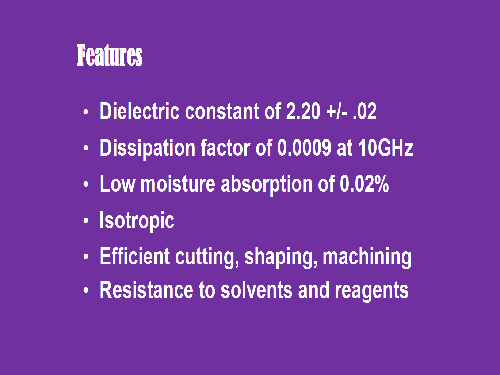

Shot 2: Features |
|
|
| |
|
RT/duroid 5880 features a dielectric constant (Dk) of 2.20 +/- .02, ensuring consistent signal propagation. Its low dissipation factor of .0009 at 10GHz minimizes energy loss during transmission, maintaining high signal integrity.
This material's moisture absorption is impressively low at 0.02%, making it well-suited for high humidity environments, as it retains its electrical and mechanical properties under such conditions.
The RT/duroid 5880 exhibits isotropic behavior, enabling uniform signal propagation in all directions, making it ideal for applications requiring multi-directional signal transmission.
In addition to its electrical properties, the RT/duroid 5880 laminate is easy to work with, allowing for efficient cutting, shaping, and machining. It exhibits resistance to solvents and reagents used in etching or plating processes, ensuring durability in harsh chemical environments.
As a well-established material, RT/duroid 5880 offers the lowest electrical loss among reinforced PTFE materials, enhancing signal integrity. |
|
|
| |
|
 |
|
|
| |
|
|
|
|
| |
|
Shot 3: PCB Capability |
|
|
| |
|
We provide a comprehensive range of PCB capabilities, including double-sided boards, multi-layer boards, and hybrid designs.
Our PCBs can be fully customized to meet your requirements, with options for copper weights of 1oz and 2oz, dielectric thicknesses ranging from 6mil to 127mil, and sizes up to 400mm X 500mm.
In addition, we offer a wide selection of solder mask colors to suit your preferences, including green, black, blue, yellow, red, and more.
You can also choose from a variety of surface finishes, such as immersion gold, HASL, immersion silver, immersion tin, OSP, bare copper, pure gold, and ENEPIG, ensuring compatibility with your specific needs. |
|
|
| |
|
PCB Capability (RT/duroid 5880) |
PCB Material: |
Glass Microfiber Reinforced PTFE Composites |
Designation: |
RT/duroid 5880 |
Dielectric constant: |
2.2 ± 0.02 at 10GHz |
Dissipation Factor |
0.0009 at 10GHz |
Layer count: |
Single Sided, Double Sided, Multilayer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
Laminate thickness: |
5mil (0.127mm), 10mil (0.254mm), 20mil (0.508mm), 31mil (0.787mm), 62mil (1.575mm ) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Immersion gold, HASL, Immersion silver, Immersion tin, OSP, Bare copper, Pure gold, ENEPIG etc.. |
|
|
|
| |
|
|
|
|
| |
|
Shot 4: Applications |
|
|
| |
|
RT/duroid 5880 PCB is commonly used in various applications such as commercial airline broadband antennas, microstrip and stripline circuits, millimeter wave applications, military radar systems, missile guidance systems, and point-to-point digital radio antennas.
Thank you. See you next time. |
|
|
| |
|
|
|
|
| |
|
