Taconic TRF-45 PCB 40mil 2 Layer Printed Circuit Board with High Thermal Conductivity and Low Loss

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.)

Brief Introduction

This double - sided Taconic TRF-45 high - frequency PCB is constructed using a 40 mil TRF - 45 low - loss ceramic - filled material. Both the top and bottom layers feature 1 - ounce copper, providing robust electrical conductivity. Employing an electroless nickel and immersion gold (ENIG) finish, TRF-45 PCB has a dielectric constant (DK) of 4.5, making it suitable for high - frequency applications. The bottom layer of TRF-45 laminate is completely exposed to the air.

PCB Specifications

PCB SIZE	100 x 65mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	TRF-45 1.02mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	5.0 mil / 6.0 mil
Minimum / Maximum Holes:	0.4 mm / 3.5 mm
Number of Different Holes:	1
Number of Drill Holes:	3
Number of Milled Slots:	1
Number of Internal Cutouts:	1
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	TRF-45
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	1.1 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion gold, 65%
Solder Mask Apply To:	Top Layer
Solder Mask Color:	Black
Solder Mask Type:	Kuangshun
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	Top Layer
Colour of Component Legend	White
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Other PCB Available Materials

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, TMM13i, Kappa 438 etc.

PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-45, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.

AD450, AD600, AD1000, TC350 etc.

Nelco N4000, N9350, N9240

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

CAPABILITY

2500-3000 types each month.

SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.

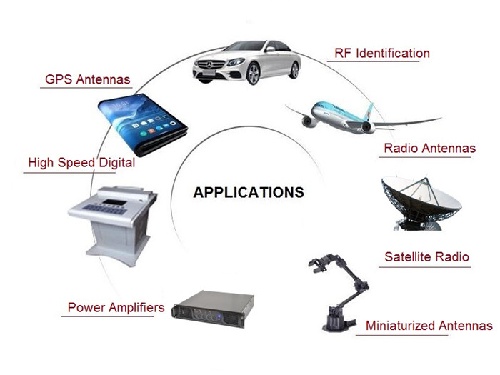

Applications:

Satellite Radio

RF Identification

Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery

We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
