Taconic TLX is a trusted material for diverse RF applications, offering a dielectric constant (DK) range of 2.45 to 2.65 and flexible thickness and copper cladding options. This PTFE-based fiberglass laminate excels in low-layer-count microwave designs, making it ideal for radar systems, mobile communications, microwave test equipment, transmission devices, and RF components.
Renowned for its durability, TLX is a go-to substrate for demanding environments. Its fiberglass reinforcement provides resistance to creep, high temperatures, and radiation, making it suitable for space launch vibrations, engine module heat, warship antennas, and altimeters exposed to extreme temperature fluctuations.
The TLX series includes TLX-0 (DK 2.45), TLX-9 (DK 2.50), TLX-8 (DK 2.55), TLX-7 (DK 2.60), and TLX-6 (DK 2.65). Thickness options span 0.127mm to 6.35mm (5mil-250mil) for TLX-0, 0.05mm to 6.35mm (2mil-250mil) for TLX-9, 0.064mm to 6.35mm (2.5mil-250mil) for TLX-8, and 0.089mm to 6.35mm (3.5mil-250mil) for TLX-7 and TLX-6. |
|
|
Exceptional Mechanical and Thermal Performance
Low and Stable Dielectric Constant (DK)
Superior Dimensional Stability.
Low Moisture Absorption.
UL 94 V-0 Flame-Retardant Rating.
Tightly Controlled DK.
Low Dissipation Factor (DF).
Optimized for Low-Layer-Count Microwave Designs |
|
|
Antennas
Couplers, Splitters, Combiners,
Amplifiers, Mixers, Filters
Passive components |
|
|

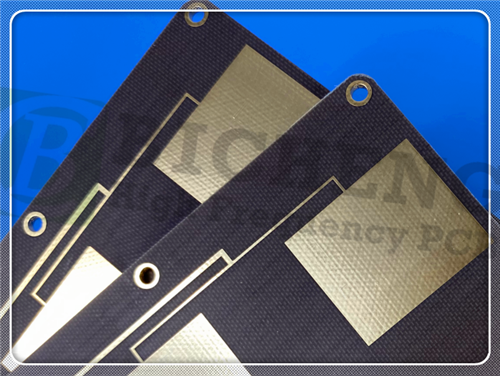

Taconic TLX-6 62mil 1.575mm RF Antenna PCB TLX-6 High Frequency PCB for Satellite Receiver |
|
|
PCB SIZE |
150 x 100mm=1PCS |
BOARD TYPE |
Double sided PCB |
Number of Layers |
2 layers, PTH |
Surface Mount Components |
YES |
Through Hole Components |
NO |
LAYER STACKUP |
copper ------- 35um(1 oz)+plate TOP layer |
|
TLX-6 1.575mm |
|
copper ------- 35um(1oz) + plate BOT Layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
15 mil / 10 mil |
Minimum / Maximum Holes: |
0.3 mm / 2.0mm |
Number of Different Holes: |
1 |
Number of Drill Holes: |
1 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
TLX-6 1.575mm |
Final foil external: |
1.5 oz |
Final foil internal: |
N/A |
Final height of PCB: |
1.6 mm ±10% |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold |
Solder Mask Apply To: |
N/A |
Solder Mask Color: |
NO |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
TOP |
Colour of Component Legend |
Black |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
None Plated through hole(NPTH), minimum size 0.3mm. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
