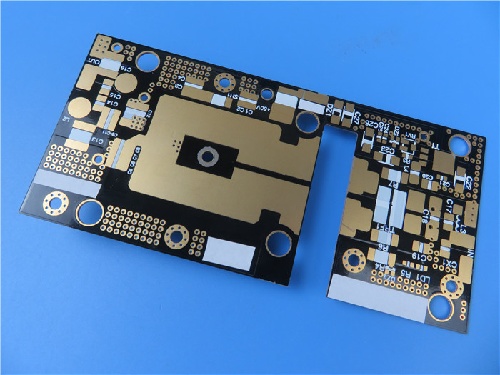

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.)

Elevate your high - power projects with this cutting - edge dual - layer PCB crafted on Taconic's RF-60TC substrate. Engineered to revolutionize thermal management, the RF-60TC PCB material enhances dielectric heat dissipation and slashes dielectric losses, ensuring significantly reduced operating temperatures while boosting gain and efficiency in high - frequency applications. With a finished 1 - oz copper layer providing robust conductivity, the top side features a solder mask and silkscreen for protection and easy component identification. Meanwhile, the bottom layer is fully covered in copper and treated with immersion gold plating, acting as an effective shielding barrier. Measuring 0.8mm in thickness, each batch of 50 boards is vacuum - packed for secure and convenient shipping, making RF-60TC laminate the ideal choice for demanding high - power, high - frequency electronic designs.

High power amplifier

Miniaturized antennas (GPS / PATCH / RFID Reader)

Filters, couplers, dividers

Satellites

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35, RF-35A2, RF-35TC, TLF-35, RF-60A, RF-45, TRF-45 etc.

AD450, AD600, AD1000, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service

2500-3000 types each month.

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
