Taconic-RF-60A-Microwave-Printed-Circuit-Board-1.27mm-50mil-2-Layer-RF-PCB-With-Immersion-Silver |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
RF - 60A is an organic - ceramic laminate from Taconic's Organic CERamic (ORCER) line of products. It is reinforced with woven glass, a result of Taconic's deep knowledge in ceramic fill technology and coated PTFE fiberglass. This laminate offers exceptional interlaminar bond strength and excellent solder resistance. Due to its unique formulation, it has low moisture absorption and consistent electrical performance. |
|
|
|
|
|
 |
|
|
|
|
|
Woven glass reinforcement in RF-60A PCB ensures outstanding dimensional stability and improves flexural strength. It has a low Z - axis expansion, which helps maintain the reliability of plated - through - holes in extreme thermal scenarios. Having a dielectric constant of around 6.15, it is an ideal choice for high DK applications where a reduction in circuit size and weight is essential. The low electrical loss factor makes it a great option for RF circuits. |
|
|
|
|
|
 |
|
|
|
|
|
Taconic RF - 60A laminates comply entirely with RoHS and WEEE directives and are suitable for the temperatures of new lead - free soldering. They can be cut, drilled, milled, and plated using standard techniques for PTFE - woven fiberglass materials, allowing for mass production to take place. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
Benefits (in general): |
|
|
Low Moisture Absorption

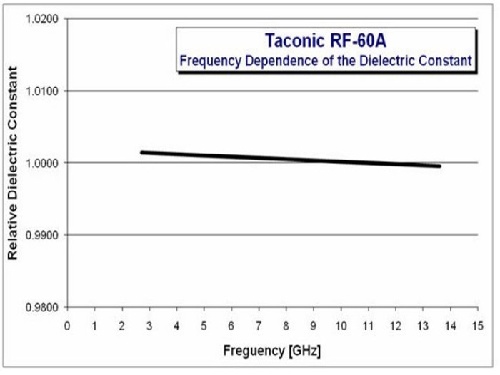

Stable DK over Frequency
Dimensionally Stable
Low Z-axis Expansion
High Flexural Strength
Exceptional Interlaminar Bonds |
|
|
|
|
|
Typical applications: |
|
|
Power Amplifiers
Filters & Couplers
Passive Components
Antennas |
|
|
|
|
PCB Capability (RF-60A) |
|
Our PCB Capability (RF-60A) |
PCB Material: |
Organic-ceramic Woven Fiberglass Reinforced Laminates |
Designation: |
RF-60A |
Dielectric constant: |
6.15 ±0.25 |

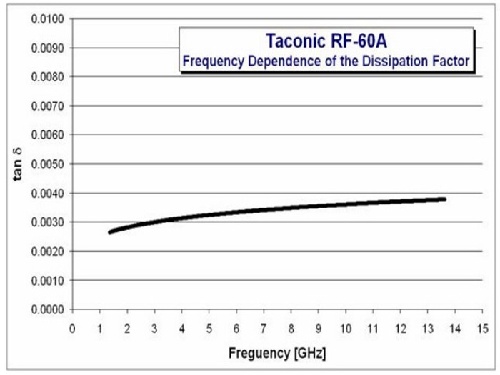

Dissipation Factor |
DF 0.0038@10 GHz |
Thermal Conductivity |
0.4 W/MK |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
10mil (0.254mm), 25mil (0.635mm), 31mil (0.787mm), 50mil (1.27mm), 60mil (1.524mm), 125mil (3.175mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP, Immersion tin etc.. |
|
|
|
|
RF-60A Typical Values |
|
RF-60A Typical Values |
Property |
Test Method |
Unit |
Value |
Unit |
Value |
Dk @ 10 GHz |
IPC-650 2.5.5.6 |
|
6.15 |
|
6.15 |
Df @ 10 GHz |
IPC-650 2.5.5.5.1 |
|
0.0038 |
|
0.0038 |
Moisture Absorption |
IPC-650 2.6.2.1 |
% |
0.02 |
% |
0.02 |
Dielectric Breakdown |
IPC-650 2.5.6 |
kV |
53 |
kV |
53 |
Dielectric Strength |
ASTM D 149 |
V/mil |
880 |
kV/mm |
35 |
Volume Resistivity |
IPC-650 2.5.17.1 (After Humidity) |
Mohm/cm |
9.0 x 108 |
Mohm/cm |
9.0 x 108 |
Surface Resistivity |
IPC-650 2.5.17.1 (After Humidity) |
Mohm |
2.28 x 108 |
Mohm |
2.28 x 108 |
Arc Resistance |
IPC-650 2.5.1 |
Seconds |
193 |
Seconds |
193 |
Flexural Strength (MD) |
ASTM D 790 |
psi |
18,300 |
N/mm2 |
126.2 |
Flexural Strength (CD) |
ASTM D 790 |
psi |
14,600 |
N/mm2 |
100.7 |
Tensile Strength (MD) |
ASTM D 3039 |
psi |
19,500 |
N/mm2 |
134.4 |
Tensile Strength (CD) |
ASTM D 3039 |
psi |
16,300 |
N/mm2 |
112.4 |
Young’s Modulus |
ASTM D 3039 |
kpsi |
1,590 |
N/mm2 |
11,000 |
Poisson’s Ratio |
ASTM D 3039 |
|
0.068 |
N/mm2 |
0.068 |
Compressive Modulus |
ASTM D 695 (23°C) |
kpsi |
338 |
|
2,330 |
Peel Strength (1 oz. ED) |
IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress) |
lbs/in |
8 |
N/mm |
1.4 |
Dimensional Stability (MD) |
IPC-650 2.4.39 Sec. 5.4 (After Bake) |
mils/in |
0.68 |
mm/M |
0.68 |
Dimensional Stability (CD) |
IPC-650 2.4.39 Sec. 5.4 (After Bake) |
mils/in |
1.05 |
mm/M |
1.05 |
Density (Specific Gravity) |
ASTM D 792 |
g/cm3 |
2.79 |
g/cm3 |
2.79 |
Thermal Conductivity |
ASTM F 433 |
W/M*K |
0.4 |
W/M*K |
0.4 |
CTE (X axis) |
ASTM D 3386 (-30°C - 125°C) |
ppm/°C |
9 |
ppm/°C |
9 |
CTE (Y axis) |
ASTM D 3386 (-30°C - 125°C) |
ppm/°C |
8 |
ppm/°C |
8 |
CTE (Z axis) |
ASTM D 3386 (-30°C - 125°C) |
ppm/°C |
69 |
ppm/°C |
69 |
Outgassing (% TML) |
ASTM E 595* |
% |
0.02 |
% |
0.02 |
Outgassing (% CVCM) |
ASTM E 595* |
% |
0.00 |
% |
0.00 |
Outgassing (% WVR) |
ASTM E 595* |
% |
0.01 |
% |
0.01 |
Flammability Rating |
UL 94 |
|
V-0 |
|
V-0 |
|
|
|
|
|
|
|
|
|
|
|
|
