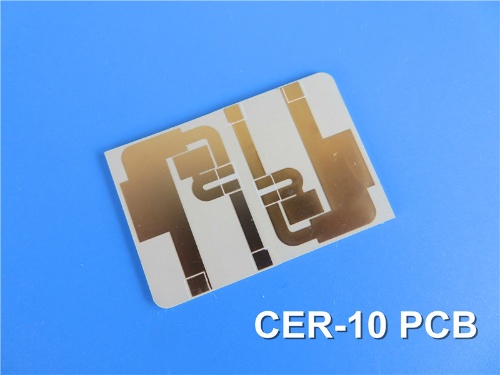

Taconic-CER-10-62mil-1.58mm-2-Layer-RF-Printed-Circuit-Board-with-Low-Moisture-Absorption-and-Immersion-Gold |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
CER-10 is an organic-ceramic laminate with a dielectric constant (DK) of 10, part of Taconic's ORCER product family. Reinforced with woven glass, CER-10 offers outstanding interlaminar bond strength and excellent solder resistance. Its unique composition ensures low moisture absorption and consistent electrical performance. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
Benefits: |
|
|
Exceptional Interlaminar Bond
Low moisture absorption
Enhanced dimensonal stability
Low Z-Axis expansion
Stable DK over frequency
Increased flexural strength
Circuit board miniturization |
|
|
|
|
|
Applications |
|
|
Power amplifiers
Filters and couplers
Passive components |
|
|
|
|
|
The woven glass reinforcement in CER-10 delivers outstanding dimensional stability and enhanced flexural strength. Featuring a low Z-axis CTE of 46 ppm/°C, this DK-10 laminate guarantees plated-through-hole reliability in harsh thermal environments.
CER-10 laminates are rated V-0 for flammability and tested in compliance with IPC-TM 650. A certificate of conformance, detailing lot-specific data, accompanies every shipment. |
|
|
|
|
|
Our PCB Capability (CER-10) |
|
|
PCB Capability (CER-10) |
PCB Material: |
Organic-ceramic Laminate based on Woven Glass Reinforcement. |
Designation: |
CER-10 |
Dielectric constant: |
10 |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm), 50mil (1.27mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG,Immersion Silver, Immersion Tin and OSP etc.. |
|
|
|
|
|
|
Typical Value of CER-10 |
|
|
CER-10 Typical Values |
Property |
Test Method |
Unit |
Value |
Unit |
Value |
Dielectric Constant (Nominal) |
IPC-TM-650 2.5.5.6 |
|
10 |
|
10 |
Dissipation Factor 10 GHz |
IPC-TM-650 2.5.5.5.1 |
|
0.0035 |
|
0.0035 |
Moisture Absorption |
IPC-TM-650 2.6.2.1 |
% |
0.02 |
% |
0.02 |
Dielectric Breakdown |
IPC-TM-650 2.5.6 |
kV |
44 |
kV |
44 |
Volume Resistivity |
IPC-TM-650 2.5.17.1 |
Mohm/cm |
2.1 x 108 |
Mohm/cm |
2.1 x 108 |
Surface Resistivity |
IPC-TM-650 2.5.17.1 |
Mohm |
1.1 x 109 |
Mohm |
1.1 x 109 |
Arc Resistance |
IPC-TM-650 2.5.1 |
Seconds |
>180 |
Seconds |
>180 |
Flexural Strength (MD) |
ASTM D 790 |
psi |
16500 |
N/mm2 |
114 |
Flexural Strength (CD) |
ASTM D 790 |
psi |
15500 |
N/mm2 |
107 |
Tensile Strength (MD) |
ASTM D 638 |
psi |
7700 |
N/mm2 |
53 |
Tensile Strength (CD) |
ASTM D 3039 |
psi |
6700 |
N/mm2 |
46 |
Peel Strength (1 oz. ED) |
IPC-TM-650 2.4.8 |
lbs/linear inch |
9 |
N/mm |
1.61 |
Dimensional Stability (MD) |
IPC-TM-650 2.4.39 |
in/in |
-0.0002 |
mm/mm |
-0.0002 |
Dimensional Stability (CD) |
IPC-TM-650 2.4.39 |
in/in |
-0.0003 |
mm/mm |
-0.0003 |
Density (Specific Gravity) |
|
g/cm3 |
3.05 |
g/cm3 |
3.05 |
Thermal Conductivity |
ASTM F 433 |
W/m/K |
0.63 |
W/m/K |
0.63 |
CTE (x-y) |
ASTM D 3386 (TMA) |
ppm/℃ |
13-15 |
ppm/℃ |
13-15 |
CTE (z) |
ASTM D 3386 (TMA) |
ppm/℃ |
46 |
ppm/℃ |
46 |
Outgassing (%TML) |
ASTM E 595 |
% |
0.02 |
% |
0.02 |
Outgassing (%CVCM) |
ASTM E 595 |
% |
0.01 |
% |
0.01 |
Outgassing (%WVR) |
ASTM E 595 |
% |
0.01 |
% |
0.01 |
Flammability Rating |
UL 94 |
|
V-0 |
|
V-0 |
|
|
|
|
|
|
|
|
|
|
|
