TRF-45 Gold Plated PCB 16mil to 64mil Thick Taconic RF Boards with DK4.5 for 5G and Radar Systems |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Hello, everyone!
Today, let's explore a particular kind of printed circuit board. We'll focus on the TRF - 45 high - frequency PCB, which is crafted from low - loss ceramic - filled PTFE material.
The Taconic TRF - 45 represents the latest in PCB materials, offering both low signal loss and excellent thermal stability. TRF - 45 PCB has a dielectric constant (Dk) of 4.5 +/- 0.15, a dissipation factor (Df) of 0.0035, and a thermal conductivity of 0.43 W/m - K. Woven glass reinforcement is integrated into its structure, significantly improving its dimensional stability. This, combined with Taconic's extensive know - how in ceramic technology, makes the TRF - 45 laminate a top - tier option for high - frequency applications. |
|
|
|
|
|
Typical Applications |
|
|
Satellite radio
RFID
GPS antenna |
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
Our PCB Capability (TRF-45) |
|
|
PCB Capability (RF-45) |
PCB Material: |
Ceramic filled PTFE |
Designation: |
TRF-45 |
Dielectric constant: |
4.5 |
Dissipation Factor |
0.0035 10GHz |
Layer count: |
Double Sided PCB, Multilayer PCB, Hybrid PCB |
Copper weight: |
1oz (35µm), 2oz (70µm) |
PCB thickness: |
8mil (0.20mm), 16mil (0.41mm), 24mil (0.61mm), 32mil (0.81mm), 40mil (1.02mm), 64mil (1.63mm), 120mil (3.05mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion silver, Immersion tin, ENEPIG, Pure gold, OSP etc.. |
|
|
|
|
|

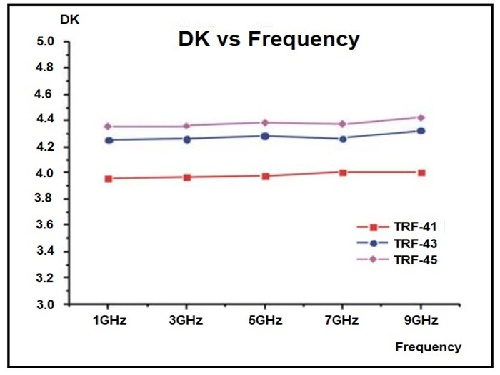

.jpg) |
|
|
|
About Us |
|
As a leading high-frequency PCB manufacturer and exporter based in Shenzhen, China, Shenzhen Bicheng Electronics Technology Co., Ltd have been serving global clients for more than 20 years across various industries, including cellular base station antennas, satellite communications, high-frequency passive components, microstrip and stripline circuits, millimeter-wave devices, radar systems, and digital RF antennas.
Our high-frequency PCBs primarily utilize three premium material brands: Rogers, Taconic, and Wangling, with dielectric constants ranging from 2.2 to 10.2 to meet diverse RF and microwave requirements.
Beyond high-frequency PCBs, we also specialize in FR-4 PCBs, flexible circuits (FPC), and metal-core PCBs (MCPCBs), offering services from prototyping to mass production. Additionally, we focus on high-value PCB solutions such as HDI, quick-turn fabrication, impedance control, heavy copper, and backplane boards, ensuring a complete product lineup that spans low-end to high-end applications.
Our PCBs serve a diverse range of applications. They are employed in numerous fields such as computer networking, safety and surveillance systems, power supply units, telecommunications infrastructure, automotive electronics, medical devices, national defense equipment, and industrial machinery. This list is not exhaustive, as our PCBs are adaptable to various other technological and engineering requirements as well.
We can provide you with prototypes, small batches and mass production PCB’s. Any questions, please feel free to contact us.
Thanks for your reading.
|
|
|
|
Appendix: Typical Value of TRF-45 |
|
TRF-45 Typical Values |
Property |
Test Method |
Unit |
Value |
Material |
/ |
/ |
RF-45 |
Dielectric Constant @ 10GHz |
IPC-TM-650 2.5.5.5.1(m) |
/ |
4.5 |
Dissipation Factor @ 10GHz |
IPC-TM-650 2.5.5.5.1(m) |
/ |
0.0035 |
Moisture Absorption |
IPC-TM-650 2.6.2.1 |
% |
≤0.06 |
Flexural Strength (Lengthwise) |
IPC-TM-650.2.4.4 |
lbs / in (N/mm2) |
17000 (177) |
Flexural Strength (Transverse) |
IPC-TM-650 2.4.4 |
lbs / in (N/mm2) |
15000 (103) |
Peel Strength |
IPC-TM-650 2.4.8 (Thermal Stress) |
lbs / in (N/mm) |
>8 （>1.4） |
Thermal Conductivity |
ASTM F 433 |
W/m/K |
0.43 |
Volume Resistivity |
IPC-TM-650 2.5.17.1 |
Mohm/cm |
8.0 x 107 |
Surface Resistivity |
IPC-TM-650.2.5.17.1 |
Mohm |
3.0 x 107 |
CTE (x) |
ASTM D 3386 (TMA) |
ppm/℃ |
9 |
CTE (y) |
ASTM D 3386 (TMA) |
ppm/℃ |
9 |
CTE (z) |
ASTM D 3386 (TMA) |
ppm/℃ |
40 |
|
|
|
|
|
|
|
|
|
|
|
|
