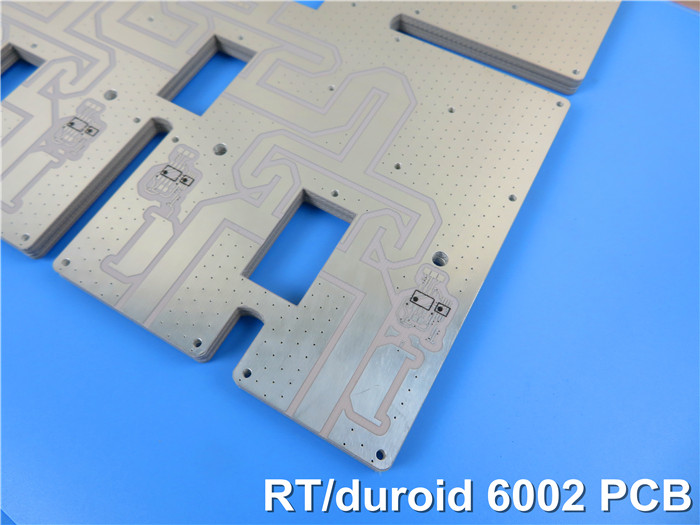

Rogers RT/duroid 6002 High Frequency PCB |
|
|
|
|
|
The RT/ duroid ? 6002 microwave material is a kind of low loss and low dielectric constant laminate, which can meet the strict requirements for mechanical reliability and electrical stability in complex microwave structural design. The main components are PTFE ceramics composites. |
|
|
|
|
|
The dielectric constant of RT/duroid 6002 has excellent resistance to temperature change between -55 ℃ and 150 ℃, which can meet the requirements of filter, oscillator and delay line application design for its electrical stability. |
|
|
|
|
|
|
|
|
The main advantages are:
Firstly, low loss ensures excellent high Frequency performance.
Secondly, excellent mechanical and electrical properties, reliable multi-layer board construction.
Thirdly, extremely low thermal coefficient of dielectric constant，ensure excellent dimensional stability.
Fourthly, in-plane expansion coefficient matched to copper, allows for more reliable surface mounted assemblies.
Fifthly, low outgassing, ideal for space applications. |
|
|
|
|
|
|
|
|
Typical applications are:
Phased Array Antennas
Round Based and Airborne Radar Systems
GPS antennas
Power Backplanes
Commercial Airline Collision Avoidance |
|
|
|
|
|
PCB Capability |
|
|
| |
| PCB Material: |
Ceramic-filled PTFE composite |
| Designation: |
RT/duroid 6002 |
| Dielectric constant: |
2.94 ±0.04 (process); 2.94 (design) |
| Layer count: |
2 Layer, Multilayer |
| Copper weight: |
0.5oz (17 μm), 1oz (35μm), 2oz (70μm) |
| PCB thickness: |
10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm), 120mil (3.048mm) |
| PCB size: |
≤400mm X 500mm |
| Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
| Surface finish: |
Bare copper, HASL, ENIG, OSP etc.. |
|
|
|
|
The base copper of RT/druoid PCB has 0.5oz, 1oz and 2oz; the thickness of PCB board is wide, ranging from 5mil to 120mil to be considered by our designers. |
|
|
|
|
|
|
|
|
The basic colour of RT/duroid 6002 PCB is white. |
|
|
|
|
|
RT/duroid 6002 PCB is very suited to the equipment of flat and non-planar structures, such as antennas, complex multi-layer circuits with inner-layer connections, and microwave circuits for aerospace designs in hostile environments.
