Rogers RT/duroid 5880 High Frequency PCB |
|
|
|
|
|
RT/duroid 5880 is one of Rogers’ glass microfiber reinforced PTFE composite which is designed for exacting stripline and microstrip circuit applications. |
|
|
|
|
|
|
|
|
Why do we use RT/duroid 5880?
Firstly, the randomly oriented microfibers result in exceptional dielectric constant uniformity.
Secondly, the dielectric constant of RT/duroid 5880 laminates is uniform from panel to panel and is constant over a wide frequency range.
Thirdly, its low dissipation factor extends the usefulness of RT/duroid 5880 laminates to Ku-band and above. It’s as low as 0.0004 when 1 MHz and 0.0009 when 10 GHz.
Fourthly, designed for exacting stripline and microstrip circuit applications |
|
|
|
|
|
PCB Capability |
|
|
| |
| PCB Material: |
Glass microfiber reinforced PTFE composites |
| Designation: |
RT/duroid 5880 |
| Dielectric constant: |
2.2 ±0.02 (process); 2.2 (design) |
| Layer count: |
2 Layer, Multilayer, Hybrid type (Mixed) |
| Copper weight: |
0.5oz (17 μm), 1oz (35μm), 2oz (70μm) |
| PCB thickness: |
10mil (0.254mm), 20mil (0.508mm), 31mil (0.787mm), 62mil (1.575mm) |
| PCB size: |
≤400mm X 500mm |
| Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
| Surface finish: |
Bare copper, HASL, ENIG, OSP, etc.. |
|
|
|
|
RT/duroid 5880 material can be made in double layer board, multilayer board and hybrid types. The double sided boards are available in a variety of thicknesses, such as 10mil, 20mil, 31mil and 62mil. |
|
|
|
|
|
|
|
|
The typical applications are
1. microstrip and stripline circuits,
2. commercial airline broadband antenna，
3. radar systems,
4. millimeter wave applications,
5. point to point digital radio antenna etc. |
|
|
|
|
|
|
|
|

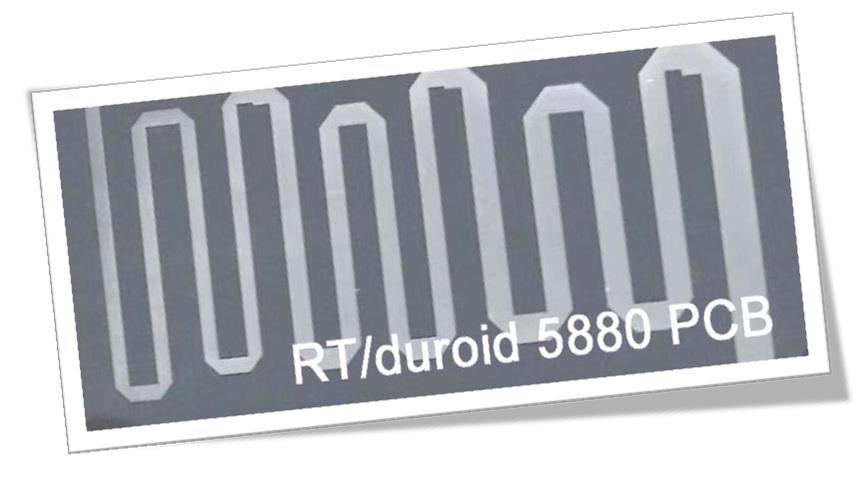

The basic colour of RT/duroid 5880 PCB is black. |
|
|
|
|
|
RT/duroid 5880 PCB also has the properties of low water absorption, excellent chemical resistance etc.
If you have any questions, please feel free to contact us.
Thank you for your reading. |
|
|
|
|
|
|
