5 Layer High Frequency PCB Built on RO4003C |
|
|
|
|
|
Today, we're going to talk about 5-layer high frequency PCB made on Rogers RO4003C.
5 layer PCB is fabricated on 3 cores of RO4003C and etched 1 layer copper off to achieve 5 layers. |
|
|
|
|
|
|
|
|
|
|
|

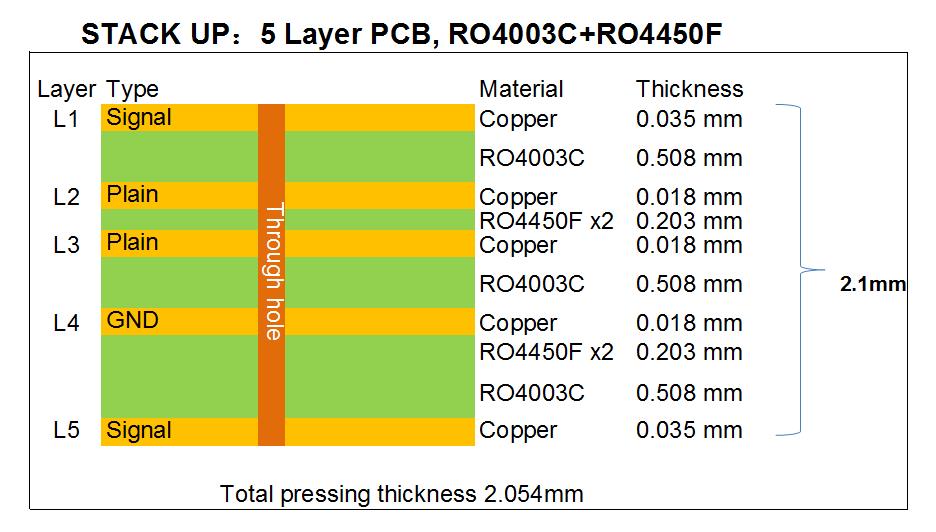

Viewing from the stack up, we can see 3 sheets of 20 mil cores achieve the basic layer structure, 2 layers of bondply bond the 3 cores which result in 5 layer board. Copper weight in inner-layer is half ounce, outer-layer 1 ounce. |
|
|
|
|
|
The top icon of this page is just the microsection of this board, which can more intuitively reflect the structure of the board. |
|
|
|
|
|
Actually the stack up of multilayer PCBs can be done in many different ways according to the different requirements or applications for controlled impedances, signal transmission etc. There’re many types cores for our designer to choose in RO4003C laminates, such as 8mil, 12mil, 16mil, 20mil etc. |
|
|
PCB Capability |
|
|
| |
| PCB type: |
High Frequency PCB |
| Designator: |
RO4350B, RO4003C, RO3003, RO3006, RO3010,
RT/duroid5880, RT/duroid5870, RT/duroid 6002, RT/duroid 6010,
TLX-0 (DK=2.45),TLX-9 (DK=2.50) TLX-8(DK=2.55), TLX-7 (DK=2.60),
TLX-6 (DK=2.65), TLY-5, RF-35TC, TLF-35,
F4B etc. |
| Solder mask: |
Green, Red, Blue, Black, Yellow |
| Layer count: |
2 Layer, 4 Layer, Multilayer |
| Copper weight: |
0.5oz (17 μm), 1oz (35μm), 2oz (70μm) |
| PCB thickness: |
1.0-5.0mm |
| PCB size: |
≤400mm X 500mm |
| Surface finish: |
HASL, ENIG, Immersion tin, OSP |
|
|
|
|
|
|
|
We have a variety of high frequency materials for customers to choose from, the main are Rogers 4000 series, 3000 series, 5000 series and 6000 series, Taconic TLX series, TLY series etc. and Chinese F4B series etc. |
|
|
|
|
|
If you're interested in, please feel free to contact us.
Thank you for your reading. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
