Rogers 4 Layer Hybrid PCB On 12mil RO4003C and FR-4 |
|
|
|
|
|
This board is designed as a 4-layer structure. 4-layer PCB is relatively simple and inexpensive, which is helpful to open up a new market. |
|
|
|
|
|
|
|
|

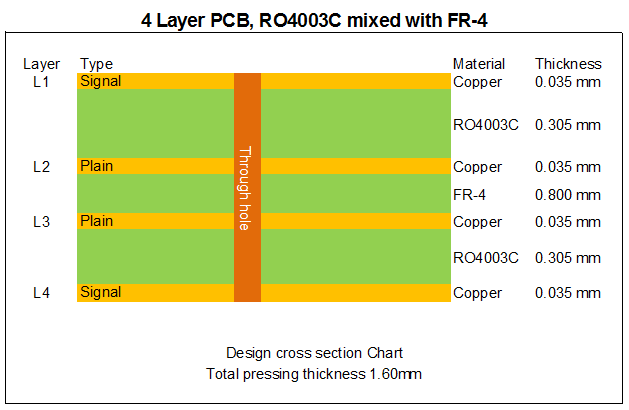

Viewing from stack up, we can see the 1st layer to the 2nd layer and 4th layer to 3rd layer are 12mil core of RO4003C, the core has fixed thickness which is very important to |
|
|
the electrical length of RF lines on the circuit board, and the rest are FR-4 materials. Copper weight on inner layer and outer layer is 1 ounce. |
|
|
The surface finish of this board is HASL. Other finish like Immersion gold, immersion tin, immersion silver and OSP etc. are available for your option. |
|
|
|
|
|
At present, the mature mixed pressing materials are as follows:
RO4350B + FR4;
RO4003C + FR4;
F4B + FR4;
Duroid/RT5880 + RO4350B
Duroid/RT5880 + FR4 |
|
|
PCB Capability |
|
|
| |
| PCB Type: |
Hybrid PCB, Mixed PCB |
| Mixed type: |
RO4350B + FR4;
RO4003C + FR4;
F4B + FR4;
Duroid/RT5880 + RO4350B
Duroid/RT5880 + FR4 |
| Solder mask: |
Green, Red, Blue, Black, Yellow |
| Layer count: |
4 Layer, 6 Layer, Multilayer |
| Copper weight: |
0.5oz (17 μm), 1oz (35μm), 2oz (70μm) |
| PCB thickness: |
1.0-5.0mm |
| PCB size: |
≤400mm X 500mm |
| Surface finish: |
Bare copper, HASL, ENIG, Immersion tin, OSP |
|
|
|
|
|
|
|
At the same time, we are able to supply blind via board, buried via board and HDI board. All the PCB's of our company will go through AOI test, open and short circuit test, |
|
|
solderability test and 288 ℃ thermal stress test to ensure high quality PCB shipped to your hands.
|
|
|
|
|
|
If you're interested in, please feel free to contact us.
Thank you for your reading. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
