Rogers RO4003C 32mil 0.813mm High Frequency PCB with Immersion Gold for Filters |
|
|

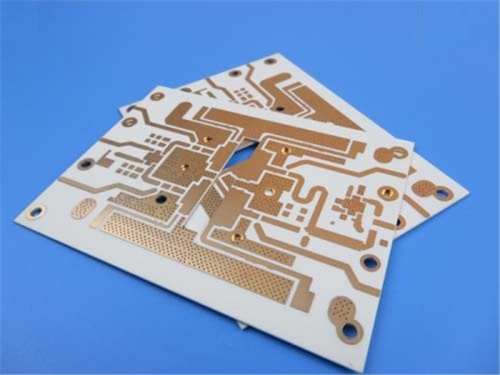

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
RO4003C hydrocarbon ceramic laminates are engineered to provide exceptional high-frequency performance and cost-effective circuit manufacturing. As operational frequencies rise above 500 MHz, designers face a significantly limited selection of laminates. However, RO4003C material possesses the necessary properties for RF microwave circuits, matching networks, and controlled impedance transmission lines. Its low dielectric loss makes it suitable for applications where conventional circuit board materials are restricted by higher operating frequencies. Furthermore, RO4003C boasts one of the lowest temperature coefficients of the dielectric constant among circuit board materials, maintaining stability across a wide frequency range. The material's thermal coefficient of expansion (CTE) offers several advantages to PCB designers, as it is similar to copper, ensuring excellent dimensional stability essential for multi-layer boards with mixed dielectrics. Additionally, RO4003C's low Z-axis CTE guarantees reliable plated through-hole quality, even in extreme thermal shock conditions. With a Tg of over 280°C, RO4003C maintains stable expansion characteristics throughout the entire PCB processing temperature range.
|
|
|
RO4003C PCB Specifications |
|
|
High Frequency PCB Rogers 32mil 0.813mm RO4003C Double Sided RF PCB for Filters |
|
|
PCB SIZE |
98 x 72mm=1PCS |
BOARD TYPE |
|
Number of Layers |
Double sided PCB |
Surface Mount Components |
YES |
Through Hole Components |
YES |
LAYER STACKUP |
copper ------- 35um(1oz)+PLATE |
|
RO4003C 32 mil 0.813mm |
|
copper ------- 35um(1oz)+PLATE |
TECHNOLOGY |
|
Minimum Trace and Space: |
6.98mil/6.28mil |
Minimum / Maximum Holes: |
0.3/1.2mm |
Number of Different Holes: |
5 |
Number of Drill Holes: |
481 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
1 |
Impedance Control |
no |
BOARD MATERIAL |
|
Glass Epoxy: |
RO4003C 32 mil (0.813mm), Tg 288℃ |
Final foil external: |
1.5oz |
Final foil internal: |
0oz |
Final height of PCB: |
0.9 mm ±0.1 |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold |
Solder Mask Apply To: |
NO |
Solder Mask Color: |
NO |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
NO |
Colour of Component Legend |
NO |
Manufacturer Name or Logo: |
N/A |
VIA |
Plated Through Hole(PTH) |
FLAMIBILITY RATING |
N/A |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" (0.15mm) |
Board plating: |
0.0030" (0.076mm) |
Drill tolerance: |
0.002" (0.05mm) |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
Typical applications:
Automotive Radar and Sensors
Cellular Base Station Antennas
Direct Broadcast Satellites
Low Noise Block
Power amplifiers
RFID |
|
|
|
|
|
.jpg) |
|
|
Data sheet of Rogers 4003C (RO4003C) |
|
|
RO4003C Typical Value |
Property |
RO4003C |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
3.38±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant,εDesign |
3.55 |
Z |
|
8 to 40 GHz |
Differential Phase Length Method |
Dissipation Factortan,δ |
0.0027
0.0021 |
Z |
|
10 GHz/23℃
2.5 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
+40 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
1.7 x 1010 |
|
MΩ.cm |
COND A |
IPC-TM-650 2.5.17.1 |
Surface Resistivity |
4.2 x 109 |
|
MΩ |
COND A |
IPC-TM-650 2.5.17.1 |
Electrical Strength |
31.2(780) |
Z |
Kv/mm(v/mil) |
0.51mm(0.020") |
IPC-TM-650 2.5.6.2 |
Tensile Modulus |
19,650(2,850)
19,450(2,821) |
X
Y |
MPa(ksi) |
RT |
ASTM D 638 |
Tensile Strength |
139(20.2)
100(14.5) |
X
Y |
MPa(ksi) |
RT |
ASTM D 638 |
Flexural Strength |
276
(40) |
|
MPa
(kpsi) |
|
IPC-TM-650 2.4.4 |
Dimensional Stability |
<0.3 |
X,Y |
mm/m
(mil/inch) |
after etch+E2/150℃ |
IPC-TM-650 2.4.39A |
Coefficient of Thermal Expansion |
11
14
46 |
X
Y
Z |
ppm/℃ |
-55℃to288℃ |
IPC-TM-650 2.4.41 |
Tg |
>280 |
|
℃ TMA |
A |
IPC-TM-650 2.4.24.3 |
Td |
425 |
|
℃ TGA |
|
ASTM D 3850 |
Thermal Conductivity |
0.71 |
|
W/M/oK |
80℃ |
ASTM C518 |
Moisture Absorption |
0.06 |
|
% |
48hrs immersion 0.060"
sample Temperature 50℃ |
ASTM D 570 |
Density |
1.79 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
Copper Peel Stength |
1.05
(6.0) |
|
N/mm
(pli) |
after solder float 1 oz.
EDC Foil |
IPC-TM-650 2.4.8 |
Flammability |
N/A |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
|
|
|
|
|
|
