Rogers-RO3010-High-Frequency-PCB--Choose-from-5mil,10mil,25mil,or-50mil-with-Immersion-Silver,Gold,Tin,or-HASL-Finishes |
|
|
|
|
|
(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hello Everyone,
Today, we’re diving into the details of RO3010 high-frequency PCBs.
RO3010 high-frequency circuit laminates are ceramic-filled PTFE composites specifically designed for commercial microwave and RF applications. A standout feature of this material is its exceptional electrical performance, coupled with stable and consistent mechanical properties. This reliability enables designers to create multi-layer boards without concerns about warping or reliability issues, ensuring robust and high-performance solutions. |
|
|
|
|
|
 |
|
|
|
|
|
Here are more features and applications of RO3010:
1.Exceptional Mechanical Stability Across Temperatures: Ensures reliable performance in stripline and multi-layer board constructions.
2.Uniform Mechanical Properties: Makes it highly compatible with hybrid designs that combine epoxy glass multi-layer boards.
3. Low In-Plane CTE Matched to Copper: Enhances reliability for surface-mounted assemblies, making it ideal for temperature-sensitive applications while maintaining excellent dimensional stability. |
|
|
|
|
Our PCB Capability (RO3010) |
|
|
PCB Material: |
Ceramic-filled PTFE composite |
Designation: |
RO3010 |
Dielectric constant: |
10. 2 ±0.3 (process) |
|
11.2 (design) |
Layer count: |
2 Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
Laminate thickness: |
5mil (0.127mm), 10mil (0.254mm), |
|
25mil (0.635mm), 50mil (1.27mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, Immersion Silver, Immersion tin, OSP etc.. |
|
|
|
|
|
|
|
|
RO3010 high-frequency PCBs are offered in double-sided, multi-layer, and hybrid constructions. They support finished copper weights ranging from 0.5oz to 2oz, thicknesses from 0.13mm to 1.3mm, and maximum board dimensions of 400mm by 500mm. Surface finish options include bare copper, hot air leveling (HASL), immersion gold, and more. |
|
|
|
|
|
 |
|
|
|
|
|
Typical applications |
|
|
1. Automotive radar applications
2. GPS Antennas
3. Power amplifiers and antennas
4. Patch antennas for wireless communications
5. Direct broadcast satellite |
|
|
|
|
|
 |
|
|
|
|
|

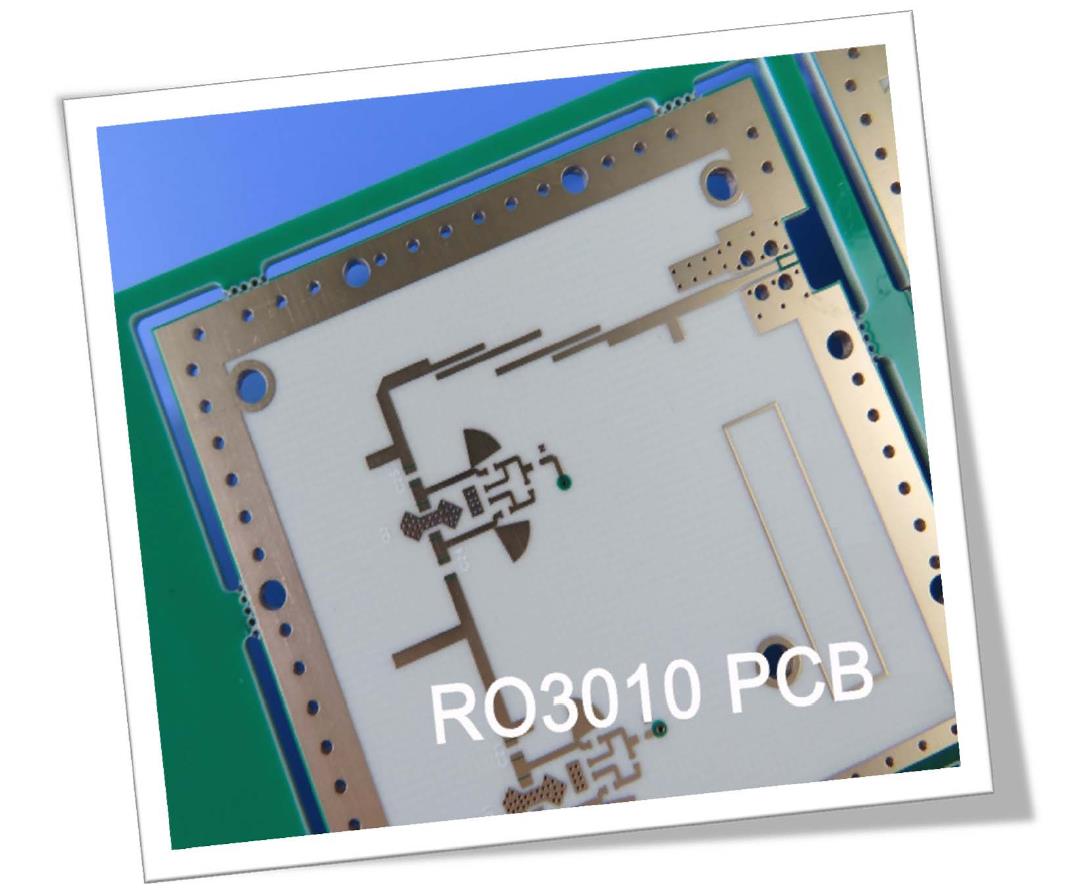

The base color of RO3010 PCB is white.
The manufacturing process for RO3010 high-frequency PCBs closely resembles that of standard PTFE PCBs, making it well-suited for high-volume production and providing a competitive edge in the market.
If you have any questions or need further information, please don’t hesitate to reach out to us.
Thank you for your time and attention! |
|
|
|
|
|
Appendix: RO3010 Data Sheet |
|
|
RO3010 Typical Value |
Property |
RO3010 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
10.2±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant,εDesign |
11.2 |
Z |
|
8GHz to 40 GHz |
Differential Phase Length Method |
Dissipation Factor,tanδ |
0.0022 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
-395 |
Z |
ppm/℃ |
10 GHz -50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Dimensional Stability |
0.35
0.31 |
X
Y |
mm/m |
COND A |
IPC-TM-650 2.2.4 |
Volume Resistivity |
105 |
|
MΩ.cm |
COND A |
IPC 2.5.17.1 |
Surface Resistivity |
105 |
|
MΩ |
COND A |
IPC 2.5.17.1 |
Tensile Modulus |
1902
1934 |
X
Y |
MPa |
23℃ |
ASTM D 638 |
Moisture Absorption |
0.05 |
|
% |
D48/50 |
IPC-TM-650 2.6.2.1 |
Specific Heat |
0.8 |
|
j/g/k |
|
Calculated |
Thermal Conductivity |
0.95 |
|
W/M/K |
50℃ |
ASTM D 5470 |
Coefficient of Thermal Expansion
(-55 to 288℃) |
13
11
16 |
X
Y
Z |
ppm/℃ |
23℃/50% RH |
IPC-TM-650 2.4.4.1 |
Td |
500 |
|
℃ TGA |
|
ASTM D 3850 |
Density |
2.8 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
Copper Peel Stength |
9.4 |
|
Ib/in. |
1oz,EDC After Solder Float |
IPC-TM 2.4.8 |
Flammability |
V-0 |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
|
|
|
|
|
|
