Precision Rogers 60 Mil and 10 Mil RO4350B 4 Layer RF Circuit Board with Back Drill for Reliable UHF Coupler Applications |
|
|
|
|
|

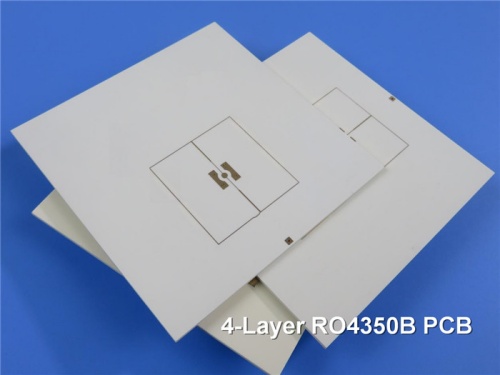

(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hello, everyone!
This is a 4 - layer RF PCB designed for UHF coupler applications. It is constructed using 60 - mil RO4350B and 10 - mil RO4350B materials. Now, let's take a look at its stack - up. |
|
|
|
|
|
 |
|
|
|
|
|
This high-performance 4-Layer RF PCB is built with a 60mil RO4350B core, a 10mil RO4350B core, and 4mil RO4450F prepreg, achieving a final thickness of 2.1mm. Featuring 35 μm (1oz) copper on each layer and immersion gold-plated pads, it ensures excellent conductivity and durability. The inclusion of back-drilled vias from the 10mil core reduces noise interference, enhances signal integrity, and simplifies fabrication by eliminating the need for buried or blind vias. Designed for high-frequency applications like UHF couplers, this PCB combines precision engineering and advanced materials to deliver unmatched reliability and performance. |
|
|
|
|
 |
|
|
|
Features and benefits |
|
|
1. RO4350B delivers a stable dielectric constant across a wide frequency range, ensuring consistent performance in diverse applications.
2. RO4350B is the perfect substrate for broadband applications, offering exceptional signal integrity and reliability.
3. With an on-time delivery rate exceeding 98%, we ensure your projects stay on schedule.
4. Specializing in small batches and medium-volume production, we provide flexible solutions tailored to your needs.
5. Rigorous WIP inspection, monitoring, and detailed work instructions guarantee the highest quality standards in every product. |
|
|
|
|
|
Applications |
|
|
Antenna, Interference filter, Sound control switch induction, Trunk amplifier |
|
|
|
|
|
RO4350B PCB Data Sheet |
|
|
PCB SIZE |
91 x 98mm=1PCS |
BOARD TYPE |
High Frequency PCB |
Number of Layers |
Multilayer PCB, 4 Layer PCB |
Surface Mount Components |
YES |
Through Hole Components |
YES |

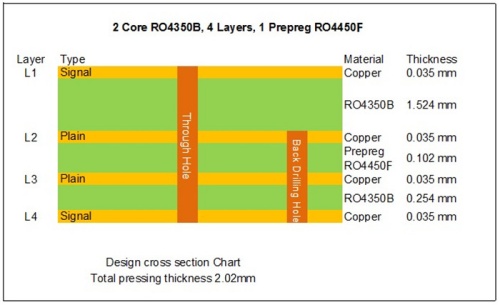

LAYER STACKUP |
copper ------- 35um(1oz)+plate TOP layer |
|
RO4350B 60 mil |
|
copper ------- MidLayer 1 |
|
RO4450F 4 mil |
|
copper ------- MidLayer 2 |
|
RO4350B 10 mil |
|
copper ------- 35um(1oz)+plate BOT Layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
10mil / 10mil |
Minimum / Maximum Holes: |
0.3/3.21mm |
Number of Different Holes: |
5 |
Number of Drill Holes: |
1680 |
Number of Milled Slots: |
1 |
Number of Internal Cutouts: |
1 |
Impedance Control |
no |
BOARD MATERIAL |
|
Glass Epoxy: |
Rogers RO4350B( core 10mil, DK=3.48) & RO4450B(PP 4mil DK=3.54) |
Final foil external: |
1.5oz |
Final foil internal: |
1oz |
Final height of PCB: |
2.1mm ±10% |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold (71.1%) 2µ" over 100µ" nickel |
Solder Mask Apply To: |
Top and Bottom layer |
Solder Mask Color: |
N/A |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
N/A |
Colour of Component Legend |
N/A |
Manufacturer Name or Logo: |
N/A |
VIA |
Plated Through Hole(PTH), via open |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" (0.15mm) |
Board plating: |
0.0030" (0.076mm) |
Drill tolerance: |
0.002" (0.05mm) |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
