Innovative-10-Layer-Hybrid-PCB-Rogers-RO4350B-and-6.6mil-FR4-with-Red-Solder-Mask-for-RF-and-WiFi-Performance |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Hello everyone,
I hope you're having a great day! Today, we’re diving into the details of a 10-layer hybrid PCB that combines Rogers RO4350B and FR-4 materials. This advanced board is specifically designed for high-gain applications, delivering exceptional performance and reliability. |
|
|
 |
|
|
|
|
|

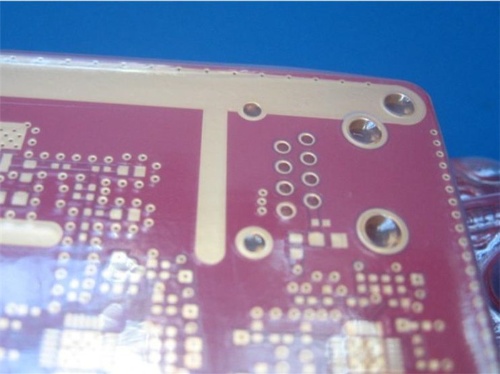

The design of this board is straightforward, featuring only through-hole connections that link each layer. With a finished thickness of 1.7mm, it incorporates immersion gold-plated pads and holes, complemented by a vibrant red solder mask surface. Manufactured in compliance with IPC 6012 Class 2 standards, the board is produced using provided Gerber data. For shipping convenience, each batch includes 20 boards securely packed together. |
|
|
|
|
|
.jpg) |
|
|
|
|
|
Applications |
|
|
Preamplifier, WiFi amplifier, relay stations and RF transceiver etc. |
|
|
|
|
|
Our advantages |
|
|
1) Help you focus on your core competencies on research and development, sales and marketing;
2) 30000 square meter month capability;
3) Meeting your PCB needs from prototype to mass production;
4) Quick and on-time delivery;
5) IATF 16949 (2016), ISO14001 (2015), ISO9001 (2015), UL certified factory. |
|
|
|
|
|
Parameter and data sheet |
|
|
PCB SIZE |
210 x 85mm=1PCS |
BOARD TYPE |
|
Number of Layers |
Multilayer PCB, 10 Layer PCB |
Surface Mount Components |
YES |
Through Hole Components |
YES |

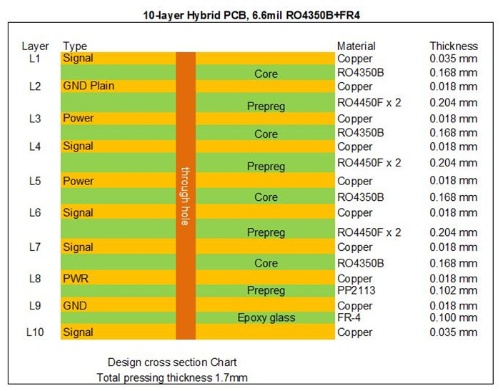

LAYER STACKUP |
copper ------- 35um(1oz)+plate TOP layer |
|
RO4350B core 0.168mm |
|
copper ------- 18um(0.5oz) MidLayer 1 |
|
RO4450F Prepreg (2x0.1) 0.2mm |
|
copper ------- 18um(0.5oz) MidLayer 2 |
|
RO4350B core 0.168mm |
|
copper ------- 18um(0.5oz) MidLayer 3 |
|
RO4450F Prepreg (2x0.1) 0.2mm |
|
copper ------- 18um(0.5oz) MidLayer 4 |
|
RO4350B core 0.168mm |
|
copper ------- 18um(0.5oz) MidLayer 5 |
|
RO4450F Prepreg (2x0.1) 0.2mm |
|
copper ------- 18um(0.5oz) MidLayer 6 |
|
RO4350B core 0.168mm |
|
copper ------- 18um(0.5oz) MidLayer 7 |
|
FR-4 pregpreg 0.1mm |
|
copper ------- 18um(1oz) MidLayer 8 |
|
FR-4 core 0.1mm |
|
copper ------- 35um(1oz)+plate BOT Layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
5.9mil/5.9mil |
Minimum / Maximum Holes: |
0.3mm/3.8mm |
Number of Different Holes: |
16 |
Number of Drill Holes: |
11385 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control |
no |
BOARD MATERIAL |
|
Glass Epoxy: |
RO4350B, RO4450B mixed with FR-4 TG>135 |
Final foil external: |
1.5oz |
Final foil internal: |
0.5oz |
Final height of PCB: |
1.7mm ±0.17 |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold (17.7%) 2µ" over 100µ" nickel |
Solder Mask Apply To: |
Top and Bottom, 12micon Minimum. |
Solder Mask Color: |
Red |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
TOP and Bottom. |
Colour of Component Legend |
White, S-380W, Taiyo Supplied. |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
Plated Through Hole(PTH), via tented. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" (0.15mm) |
Board plating: |
0.0030" (0.076mm) |
Drill tolerance: |
0.002" (0.05mm) |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
Our Driving Circuit Boards Capabilities 2022 |
|
|
Blind vias, Buried vias
Flex PCB
Heavy Copper Boards 12oz
High Tg, High CTI Material
Hybrid FR-4 and High Frequency Material
Impedance Controlled PCB
IPC Class 2, IPC Class 3
Lead Free PCB (RoHS Compliant)
Multilayer PCBs to 32+ copper layers boards
Metal Core PCB (MCPCB)
RoHS Compliant PCB Manufacturer
Rigid Flex PCB
Through-hole, BGA, Gold Finger, Edge dome
Via-in-pad, Filled vias |
|
|
|
|
PCB Materials |
|
|
RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210;
RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC;
TMM4, TMM10, Kappa 438;
TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5;
PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2);
AD450, AD600, AD1000, TC350;
Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V;
Polyimide, PET;
Metal Core etc. |
|
|
|
|
|
|
|
|
|
|
|
