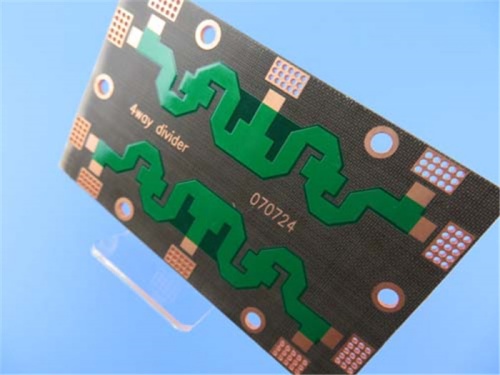

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Brief Introduction
The PCB under discussion today measures 89mm x 61mm, with only one PCB per panel. It is a double - sided PCB, featuring two conductive layers for circuit construction. This PCB does not incorporate any surface - mount components; rather, it is equipped with through - hole components. Regarding the layer stack - up, it starts with a copper layer having a final thickness of 35um (which is equivalent to 1oz). In the middle, there is F4BME265 material with a thickness of 1.5mm. After plating, another copper layer of the same 35um (1oz) thickness is present on the opposite side. |
|
|
|
|
|
The details are presented in the table below. |
|
|
|
|
|
PCB Specifications |
|
|
F4BME265 High Frequency PCB DK2.65 PTFE Double Sided With OSP and Green Mask |
|
|
PCB SIZE |
89 x 61mm=1PCS |
BOARD TYPE |
Microwave PCB |
Number of Layers |
Double sided PCB |
Surface Mount Components |
NO |
Through Hole Components |
YES |
LAYER STACKUP |
copper ------- 18um(0.5oz)+PLATE |
F4BME265 1.524mm |
copper ------- 18um(0.5oz)+PLATE |
TECHNOLOGY |
|
Minimum Trace and Space: |
6mil/9mil |
Minimum / Maximum Holes: |
0.9/2.3mm |
Number of Different Holes: |
3 |
Number of Drill Holes: |
156 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
1 |
Impedance Control |
no |
BOARD MATERIAL |
|
Glass Epoxy: |
F4BME265 dk2.65 |
Final foil external: |
1oz |
Final foil internal: |
1oz |
Final height of PCB: |
1.6 mm ±0.16 |
PLATING AND COATING |
|
Surface Finish |
OSP, Thickness >0.2µm |
Solder Mask Apply To: |
TOP, 12micron Minimum |
Solder Mask Color: |
Gloss Green, Taiyo PSR-2000GT600D |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
No silkscreen required. |
Colour of Component Legend |
No silkscreen required. |
Manufacturer Name or Logo: |
No silkscreen required. |
VIA |
Plated through hole(PTH), via open. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
.jpg) |
|
F4BME High Frequency Laminates
The F4BME series laminates are produced by scientifically formulating and strictly pressing a combination of fiberglass cloth, polytetrafluoroethylene resin, and polytetrafluoroethylene film. Compared to F4B, its electrical performance is enhanced. This is mainly manifested in a wider range of dielectric constants, lower dielectric loss, increased insulation resistance, and improved stability. It is capable of replacing similar foreign products. |
|
|
|
|
|
Features
◆ DK2.17 ～ 3.0 is optional, and DK can be customized
◆ Low loss
◆ F4BME with RTF copper foil has excellent PIM index
◆ Diversified size and cost saving
◆ Irradiation resistance and low exhaust
◆ Commercialization, mass production and high cost performance |
|
|
|
|
|
Typical Applications
◆ Microwave, RF, radar
◆ Phase shifter, passive components
◆ Power divider, coupler and combiner
◆ Feed network, phased array antenna
◆ Satellite communication, base station antenna |
|
|
|
|
|
Data Sheets (F4BME) |
|
|
Product Technical Parameters |
Product Model & Data Sheet |
Product Features |
Test Conditions |
Unit |
F4BME
217 |
F4BME
220 |
F4BME
233 |
F4BME
45 |
F4BME
255 |
F4BME
265 |
F4BME
275 |
F4BME
294 |
F4BME
300 |
Dielectric Constant (Typical) |
10GHz |
/ |
2.17 |
2.2 |
2.33 |
2.45 |
2.55 |
2.65 |
2.75 |
2.94 |
3.0 |
Dielectric Constant Tolerance |
/ |
/ |
±0.04 |
±0.04 |
±0.04 |
±0.05 |
±0.05 |
±0.05 |
±0.05 |
±0.06 |
±0.06 |
Loss Tangent (Typical) |
10GHz |
/ |
0.001 |
0.001 |
0.0011 |
0.0012 |
0.0013 |
0.0013 |
0.0015 |
0.0016 |
0.0017 |
|
20GHz |
/ |
0.0014 |
0.0014 |
0.0015 |
0.0017 |
0.0018 |
0.0019 |
0.0021 |
0.0023 |
0.0025 |
Dielectric Constant Temperature Coefficient |
-55ºC～150ºC |
PPM/℃ |
-150 |
-142 |
-130 |
-120 |
-110 |
-100 |
-92 |
-85 |
-80 |
Peel Strength |
1 OZ F4BM |
N/mm |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
>1.8 |
|
1 OZ F4BME |
N/mm |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
>1.6 |
Volume Resistivity |
Standard Condition |
MΩ.cm |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
≥6×10^6 |
Surface Resistivity |
Standard Condition |
MΩ |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
≥1×10^6 |
Electrical Strength (Z direction) |
5KW，500V/s |
KV/mm |
>23 |
>23 |
>23 |
>25 |
>25 |
>25 |
>28 |
>30 |
>30 |
Breakdown Voltage (XY direction) |
5KW，500V/s |
KV |
>30 |
>30 |
>32 |
>32 |
>34 |
>34 |
>35 |
>36 |
>36 |
Coefficientof Thermal Expansion |
XY direction |
-55 º~288ºC |
ppm/ºC |
25, 34 |
25, 34 |
22, 30 |
20, 25 |
16, 21 |
14, 17 |
14, 16 |
12, 15 |
12, 15 |
|
Z direction |
-55 º~288ºC |
ppm/ºC |
240 |
240 |
205 |
187 |
173 |
142 |
112 |
98 |
95 |
Thermal Stress |
260℃, 10s，3 times |
No delamination
|
Water Absorption |
20±2℃, 24 hours |
% |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
≤0.08 |
Density |
Room Temperature |
g/cm3 |
2.17 |
2.18 |
2.20 |
2.22 |
2.25 |
2.25 |
2.28 |
2.29 |
2.29 |
Long-Term Operating Temperature |
High-Low Temperature Chamber |
℃ |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
-55～+260 |
Thermal Conductivity |
Z direction |
W/(M.K) |
0.24 |
0.24 |
0.28 |
0.30 |
0.33 |
0.36 |
0.38 |
0.41 |
0.42 |
PIM |
Only applicable to F4BME |
dBc |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
≤-159 |
Flammability |
/ |
UL-94 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
Material Composition |
/ |
/ |
PTFE, Fiberglass Cloth
F4BM paired with ED copper foil, F4BME paired with reverse-treated (RTF) copper foil. |
|
|
|
|
|
|
|
|
|
