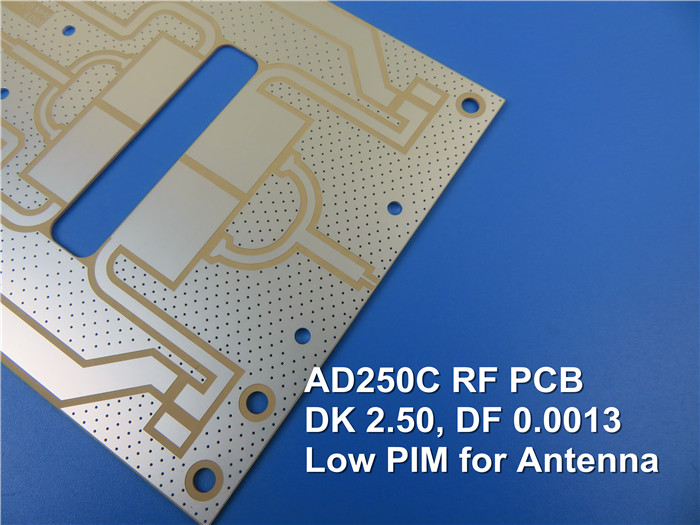

AD250C High Frequency PCB |
|
|
|
|
|
Rogers AD250C antenna PCBs are PTFE based with woven fiberglass and micro-dispersed ceramic filled composites that provide controlled dielectric constant (2.50 +/-0.04), low loss (0.0014 loss tangent at 10GHz) and low passive intermodulation (PIM) performance which is good for antenna applications. Among Rogers antenna grade materials, they are a type of cost-effective high frequency PCB for today's telecommunication infrastructure, combining chemistry composites and design of build-up structure. AD250C PCB uses low profile copper (reverse treated ED copper foil), this helps reducing both conductive losses and antenna PIM. |
|
|
|
|
|
Typical Applications
1.Automotive Telematics Antenna Systems
2.Base Station Antenna Applications
3.Cellular Infrastructure Base Station Antenna
4.Commercial Satellite Radio Antenna
5.Digital Audio Broadcasting (DAB) Antennas
6.Radar Manifolds and Feed Networks |
|
|
|
|
|
|
|
|
|
|
|
Our PCB Capability (AD250C) |
|
|
| PCB Material: |
PTFE based Woven Fiberglass/Ceramic Filled Composites |
| Designation: |
AD250C |
| Dielectric constant: |
2.50? (10 GHz) |
| Dissipation factor |
0.0013 (10 GHz) |
| Layer count: |
Double Sided PCB, Multilayer PCB, Hybrid PCB |
| Copper weight: |
1oz (35μm), 2oz (70μm) |
| Dielectric thickness |
20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm) |
| PCB size: |
≤400mm X 500mm |
| Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
| Surface finish: |
Immersion gold (ENIG), HASL, Immersion silver, Immersion tin, OSP, ENEPIG, Bare copper, Pure gold plated etc.. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
