Multilayer high-frequency PCBs are constructed entirely from high-performance materials, including specialized prepreg adhesives, ensuring optimal signal integrity and reliability. For example, a 4-layer RO4350B PCB is constructed using two cores of RO4350B substrates bonded together with prepreg material. As is widely known, the RO4350B family includes 8 core thickness options, ranging from 4 mil (0.101 mm) to 60 mil (1.524 mm).

The 4-layer configuration? A game-changer. Combine two RO4350B cores with precision-aligned prepreg for custom stackups that outperform traditional hybrid materials.

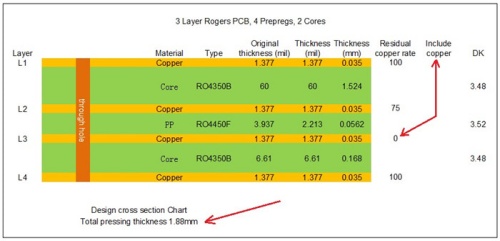

This 3-layer high-frequency PCB is constructed using 2 cores of RO4350B, with one layer of copper etched away, resulting in a final stack-up of 3 conductive layers.

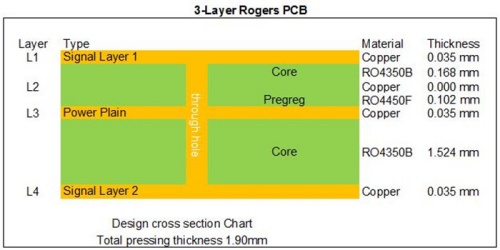

The structure consists of one 60mil RO4350B core, combined with 4mil RO4450F prepreg and a 6.6mil RO4350B layer. The board measures 110mm x 110mm square and features immersion gold (ENIG) finishes on the pads. Packaged in sets of 20 pieces per shipment, these PCBs are specifically designed for wireless booster applications. Below are the actual measured values from engineering manufacturing.
