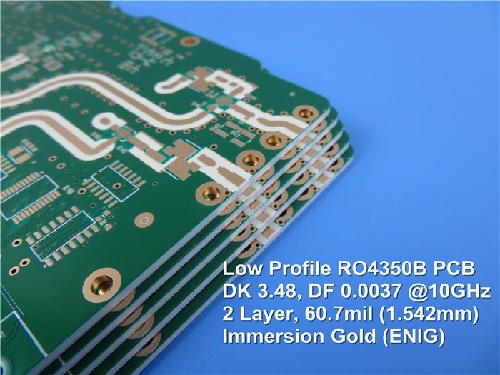

60.7mil-RO4350B-LoPro-RF-PCB-Rogers-Reverse-Treated-Foil-PCB-Circuit-Board-With-Immersion-Gold |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Rogers' proprietary technology is applied in RO4350B LoPro PCBs. This technology allows the reverse - treated foil to connect to the standard RO4350B dielectric. As a result, the laminate has minimized conductor loss, which helps to enhance insertion loss and signal integrity. All the other appealing properties of the standard RO4350B laminate system are also kept intact. |
|
|
.JPG) |
|
|
|
|
|
Features and Benefits: |
|
|
RO4350B materials are reinforced hydrocarbon/ceramic laminates with very low profile reverse treated foil.
1. Lower insertion loss
2. Low PIM
3. Increased signal integrity
4. High circuit density
Low Z-axis coefficient of thermal expansion
1. Multi-layer board capability
2. Design flexibility
Lead-free process compatible
1. High temperature processing
2. Meets environmental concerns
CAF resistant |
|
|
|
|
|
.JPG) |
|
|
|
|
|
PCB Capability(RO4350B LoPro) |
|
|
Our PCB Capability (RO4350B LoPro) |
PCB Material: |
Hydrocarbon Ceramic Laminates |
Designation: |
RO4350B LoPro |
Dielectric constant: |
3.48±0.05 |
Layer count: |
Double Layer, Multilayer, Hybrid PCB |
Copper weight: |
0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: |
10.7mil (0.272mm), 14mil (0.356mm), 17.3mil (0.439mm), 20.7mil(0.526mm), 30.7mil (0.780mm), 60.7mil(1.542mm) |
PCB size: |
≤400mm X 500mm |
Solder mask: |
Green, Black, Blue, Yellow, Red etc. |
Surface finish: |
Bare copper, HASL, ENIG, OSP, Immersion tin etc.. |
|
|
|
|
|
|
Typical applications: |
|
|
1.Digital applications such as servers, routers, and high speed back planes
2.Cellular base station antennas and power amplifiers
3.LNB’s for direct broadcast satellites
4.RF Identification Tags |
|
|
|
|
Typical Properties of RO4350B LoPro |
|
Typical Properties of RO4350B LoPro |
Property |
Typical Value |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant, Process |
3.48 ± 0.05 |
z |
-- |
10 GHz/23°C |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant, Design |
3.55 |
z |
-- |
8 to 40 GHz |
Differential Phase Length Method |
Dissipation Factor tan, d |
0.0037 0.0031 |
z |
-- |
10 GHz/23°C 2.5 GHz/23°C |
IPC-TM-650 2.5.5.5 |
Thermal Coeffifi cient of er |
50 |
z |
ppm/°C |
-50°C to 150°C |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
1.2 X 1010 |
|
MΩ•cm |
COND A |
IPC-TM-650 2.5.17.1 |
Surface Resistivity |
5.7 X 109 |
|
MΩ |
COND A |
IPC-TM-650 2.5.17.1 |
Electrical Strength |
31.2(780) |
z |
KV/mm(V/mil) |
0.51mm(0.020”) |
IPC-TM-650 2.5.6.2 |
Tensile Modulus |
11473(1664) |
Y |
MPa(kpsi) |
RT |
ASTM D638 |
Tensile Strength |
175(25.4) |
Y |
MPa(kpsi) |
RT |
ASTM D638 |
Flexural Strength |
255(37) |
|
MPa(kpsi) |
|
IPC-TM-650 2.4.4 |
Dimensional Stability |
<0.5 |
X,Y |
mm/m(mils/inch) |
after etch +E2/150°C |
IPC-TM-650 2.4.39A |
Coeffifi cient of Thermal Expansion |
14 |
x |
ppm/°C |
-55 to 288°C |
IPC-TM-650 2.1.41 |
|
16 |
y |
|
|
|
|
35 |
z |
|
|
|
Tg |
>280 |
|
°C TMA |
A |
IPC-TM-650 2.4.24.3 |
Td |
390 |
|
°C TGA |
|
ASTM D3850 |
Thermal Conductivity |
0.62 |
|
W/m/°K |
80°C |
ASTM C518 |
Moisture Absorption |
0.06 |
|
% |
48 hrs immersion 0.060” sample Temperature 50°C |
ASTM D570 |
Density |
1.86 |
|
gm/cm3 |
23°C |
ASTM D792 |
Copper Peel Strength |
0.88(5.0) |
|
N/mm(pli) |
after solder float 1 oz. TC Foil |
IPC-TM-650 2.4.8 |
Flammability |
V-0 |
|
|
|
UL 94 |
Lead-Free Process Compatible |
Yes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
