Looking for a PCB solution that combines performance, flexibility, and reliability? Our multilayer high-frequency PCBs are made exclusively with premium materials, including RO4350B substrates and prepreg adhesives, ensuring top-tier quality for your most demanding applications. Take, for example, our 4-layer RO4350B PCB—constructed with 2 cores of RO4350B substrates, it’s engineered to deliver unmatched performance.

With the RO4350B family offering 8 core thickness options—from 4 mil (0.101 mm) to 60 mil (1.524 mm)—the design possibilities are virtually endless. This versatility allows you to create custom stack-ups tailored to your unique project needs, whether you're optimizing for signal integrity, thermal management, or mechanical strength.

It's quite fascinating how a 4 - layer stack - up can be achieved in numerous distinct ways.

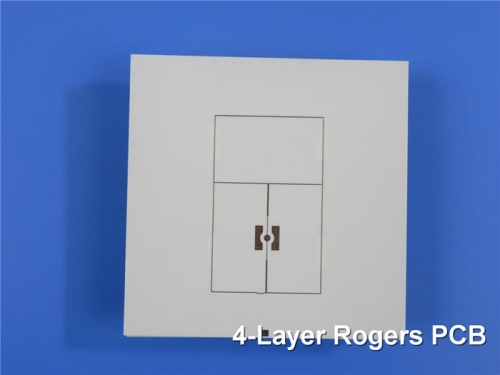

Today, we'll be presenting Rogers 4 - layer PCBs constructed using 6.6mil and 20mil RO4350B materials. First, let's take a look at the initial PCB and its corresponding stack - up, which is presented below.

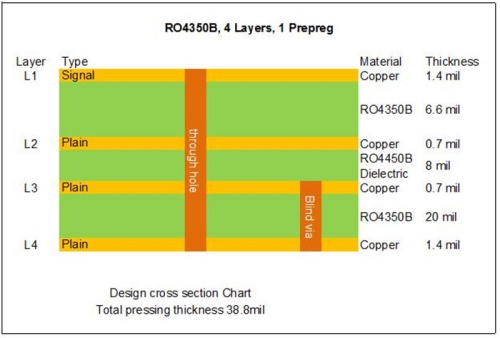

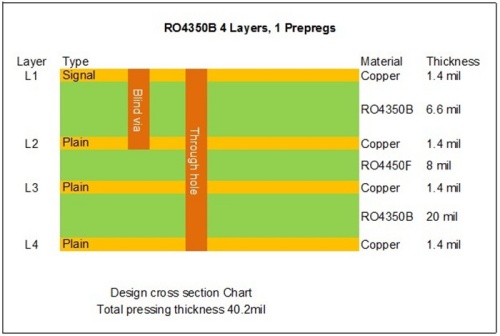

The first core, which is 6.6 mil thick, is positioned between layer 1 and layer 2. The second core, being 20 mil thick, lies between layer 3 and layer 4. They are connected by two sheets of RO4450F, each with a thickness of 4 mil.

This PCB, designed for radar sensors, has a thickness of 1.0 mm and its pads are finished with immersion gold. It features blind vias that link the top layer to the first inner layer. Due to its asymmetric buildup, a warpage of up to 1.2% is acceptable. It is fabricated according to IPC 6012 Class 2 using the provided Gerber data. For shipment, 10 boards are packaged together.

Features and benefits

1) The dielectric constant (DK) is low and stable, so the signal transmission is good without delay.

2) Immersion gold has excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP mounted components to reduce failure rate during assembly and soldering.

3) 100% tests inclusive of electrical test and AOI inspection, thermal stress test, reliability test, insulation resistance test and ionic contamination test,

4) Fast and flexible to save the time of production from prototype to standard production

5) UL recognized and RoHS Directive-compliant
