6-Layer-20mil-High-Frequency-PCB-with-3-Cores-Rogers-RO4003C-and-4mil-RO4450F-for-Advanced-Radar-Altimeter-Solutions |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Hi everyone,
Warm greetings!

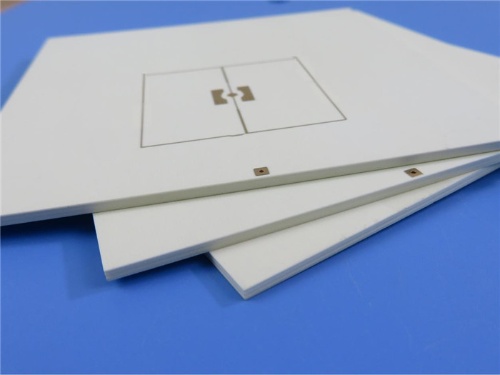

Today, we’re introducing a 6-layer high-frequency PCB designed specifically for radar altimeter applications. This PCB is constructed using 3 cores of 20mil RO4003C combined with bondply RO4450F, ensuring exceptional performance and reliability. Below, you’ll find the detailed stack-up for your reference. |
|
|
|
|
|
 |
|
|
|
|
|
As widely recognized, the RO4003C family includes six core thickness options, ranging from 8mil (0.203mm) to 60mil (1.524mm), offering versatility for various design requirements. |
|
|
|
|
|
RO4003C: |
|
8mil |
0.203mm |
12mil |
0.305mm |
16mil |
0.406mm |
20mil |
0.508mm |
32mil |
0.813mm |
60mil |
1.524mm |
|
|
|
It’s truly fascinating how a 4-layer stack-up can be configured in numerous ways to meet diverse design needs. |
|
|
|
|
|
Here are the the basic specifications. |
|
|
Base material: RO4003C 0.508 mm x 3 sheets, RO4450F 0.102mm x 1 sheet
Layer count: 6 layers
Type: 1 PCB up per panel with v-cut
Format: 129mm x 75mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 35 μm
Solder mask / Legend: Green / White
Final PCB height: 1.94 mm
Standard: IPC 6012 Class 2
Packing: 20 panels are packed for shipment.
Lead time: 10 working days
Shelf life: 6 months |
|
|
|
|
|
Features and benefits |
|
|
1. Stable Dielectric Constant: RO4003C maintains a consistent dielectric constant across a wide frequency range, making it perfect for broadband applications.
2. Minimized Signal Loss: Ideal for high-frequency applications, it supports the evolving demands of communication technology.
3. Certified Excellence: Our factory is UL, ISO14001, and IATF16949 certified, ensuring top-quality standards.
4. Spacious Facility: A 16,000 square meter workshop enables efficient and scalable production.
5. Proven Expertise: With over 18 years of PCB manufacturing experience, we deliver reliable and innovative solutions. |
|
|
|
|
|
Typical applications: |
|
|
Satellite antenna, Power splitter, Radio frequency, Power divider |
|
|
|
|
|
RO4003C PCB Datasheet |
|
|
6 Layer High Frequency PCB Built On 3 Core 20mil RO4003C and 4mil RO4450F for Radar Altimeter |
|
|
PCB SIZE |
129 x 75mm=1PCS |
BOARD TYPE |
Multilayer PCB |
Number of Layers |
6 layers |
Surface Mount Components |
YES |
Through Hole Components |
YES |

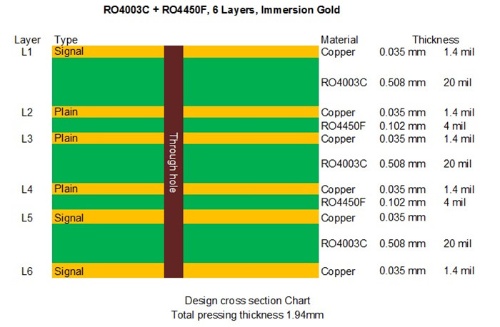

LAYER STACKUP |
copper --------35µm (1 oz)+plate TOP layer |
|
RO4003C 0.508mm |
|
copper ------- 35µm(1 oz) |
|
Prepreg RO4450F 0.101mm |
|
Copper ------- 35µm (1 oz) |
|
RO4003C 0.508mm |
|
Copper ------- 35µm (1 oz) |
|
Prepreg RO4450F 0.101mm |
|
Copper ------- 35µm (1 oz) |
|
RO4003C 0.508mm |
|
copper --------35µm (1 oz)+plate BOT layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
6mil / 6 mil |
Minimum / Maximum Holes: |
0.4 mm / 3.5 mm |
Number of Different Holes: |
15 |
Number of Drill Holes: |
324 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
RO4003C, RO4450F, Tg280℃, er<3.48, Rogers Corp. |
Final foil external: |
1 oz |
Final foil internal: |
1 oz |
Final height of PCB: |
1.94 mm ±10% |
PLATING AND COATING |
|
Surface Finish |
Immersion gold 0.05 micron over nickle 4.4 micron |
Solder Mask Apply To: |
N/A |
Solder Mask Color: |
N/A |
Solder Mask Type: |
N/A |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
N/A |
Colour of Component Legend |
N/A |
Manufacturer Name or Logo: |
N/A |
VIA |
Plated through hole(PTH), minimum size 0.4mm. No blind via or buried vias |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
.jpg) |
|
|
|
Thank you for reading! We’re here to assist with all your PCB needs—feel free to reach out for any inquiries or support. |
|
|
|
|
