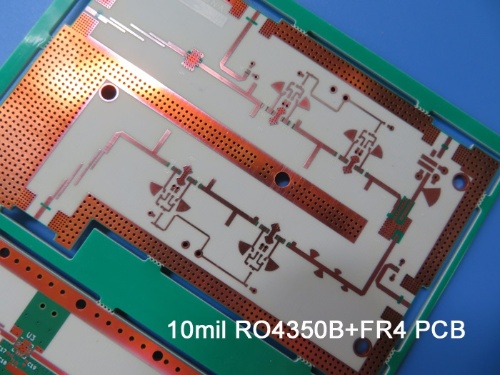

5-Layer-10mil-Rogers-RO4350B-and-FR-4-Hybrid-RF-Circuit-Board-High-Frequency-PCB-for-2.4 Ghz-Antenna |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Hello everyone,
Warm greetings!
Today, we’re excited to introduce a 5-layer PCB crafted with a combination of RO4350B high-frequency material and epoxy glass FR-4. Designed specifically for 2.4 GHz antenna applications, this board features a 1.0 mm thickness with plated through holes. Both sides are coated with a green solder mask, while the pads are finished with immersion gold for enhanced durability. Manufactured in compliance with IPC 6012 Class 2 standards using provided Gerber files, each shipment is carefully packed in sets of 25 boards. |
|
|
|
|
|
 |
|
|

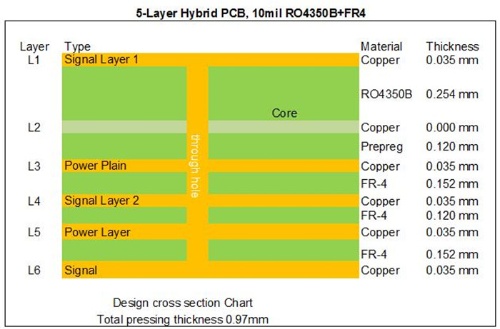

The diagram above illustrates the stack-up. In this design, Layer 2 has been etched away, leaving five layers of copper on the board. |
|
|
|
|
|
Features and benefits |
|
|
1. Enhanced Signal Integrity:
Outperforms stack-ups using only FR4 materials, ensuring superior signal performance.
2. High Production Capacity:
30,000 square meters of PCB production per month.
3. Diverse Capability:
Capable of manufacturing 8,000 types of PCBs monthly.
4. Efficient Service:
Quick CADCAM review and free PCB quotations.
5. Flexible Ordering:
No minimum order quantity (MOQ), with cost-effective options for prototypes and small-batch orders.
6.Quality Assurance:
Compliant with IPC Class 2 and IPC Class 3 standards for reliable performance. |
|
|
|
|
|
 |
|
|
|
|
|
Applications |
|
|
The applications are extensive, including consumer electronics, WiFi antennas, 8-port switches, embedded computers, DC transformers,
automotive inverters, WiFi/4G routers, and temperature control modules, among others. |
|
|
|
Parameter and data sheet |
|
PCB SIZE |
159.12 x 39.78mm=1PCS |
BOARD TYPE |
Hybrid Multilayer PCB |
Number of Layers |
5 layers |
Surface Mount Components |
YES |
Through Hole Components |
YES |
LAYER STACKUP |
copper ------- 18um(0.5oz)+plate TOP layer |
|
RO4350B 10 mil (0.254mm) |
|
Prepreg 0.12mm |
|
copper ------- 35um(1oz) MidLayer 1 |
|
FR-4 0.152mm |
|
copper ------- 35um(1oz) MidLayer 2 |
|
Prepreg 0.12mm |
|
copper ------- 35um(1oz) MidLayer 3 |
|
FR-4 0.152mm |
|
copper ------- 18um(0.5oz)+plate BOT layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
5 mil / 5 mil |
Minimum / Maximum Holes: |
0.4 mm / 5.0 mm |
Number of Different Holes: |
7 |
Number of Drill Holes: |
81 |
Number of Milled Slots: |
2 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
FR-4 Tg130℃, er<5.4; RO4350B Tg280℃, er < 3.8 |
Final foil external: |
1 oz |
Final foil internal: |
1 oz |
Final height of PCB: |
1.0 mm ±0.1 |
PLATING AND COATING |
|
Surface Finish |
Immersion gold (14.6% ) 0.05µm over 3µm nickel |
Solder Mask Apply To: |
TOP and Bottom, 12micron Minimum |
Solder Mask Color: |
Green, PSR-2000GT600D, Taiyo Supplied. |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
CNC Routing |
MARKING |
|
Side of Component Legend |
TOP and Bottom. |
Colour of Component Legend |
White, IJR-4000 MW300, Taiyo brand |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
Plated through hole(PTH), minimum size 0.4mm. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
|
|
|
|
|
|
