30mil Taconic RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver on Pads

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.)

Brief Introduction

This immersion silver-finished RF PCB is fabricated using Taconic RF-45 laminate . It is a double-layer circuit board with 1-ounce copper on each layer. The solder mask and silkscreen are applied only to the top layer, while the bottom layer is fully exposed and coated with immersion silver as a shielding mechanism. Taconic RF-45 PCBs, with a thickness of 0.8 millimeters, are packaged in batches of 50 and vacuum-sealed for secure transportation and storage.

PCB Specifications

PCB SIZE	70 x 55mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	RF-45 0.787mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	4.0 mil / 5.0 mil
Minimum / Maximum Holes:	0.4 mm / 6.0 mm
Number of Different Holes:	1
Number of Drill Holes:	3
Number of Milled Slots:	1
Number of Internal Cutouts:	no
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RF-45
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	0.8 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion silver, 39%
Solder Mask Apply To:	Top Layer
Solder Mask Color:	Blue
Solder Mask Type:	Kuangshun
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	Top Layer
Colour of Component Legend	White
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Typical Applications

GPS Antennas

RFID Antennas

Satellite Radio Antennas

Other Available PCB Materials

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, TMM13i, Kappa 438 etc.

PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-45, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.

AD450, AD600, AD1000, TC350 etc.

Nelco N4000, N9350, N9240

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G

Our PCB Services

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service

CAPABILITY

2500-3000 types each month.

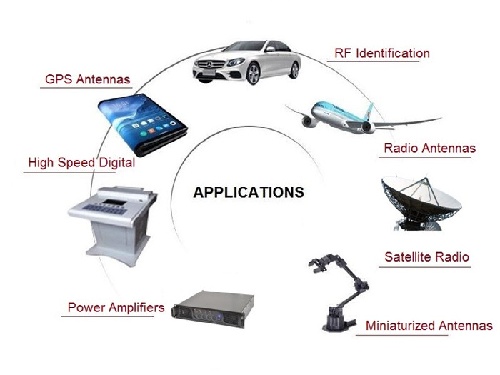

Typical Applications:

Satellite Radio

RFID Tags

Satellite Radio Antennas

RFID Antennas

GPS Antennas

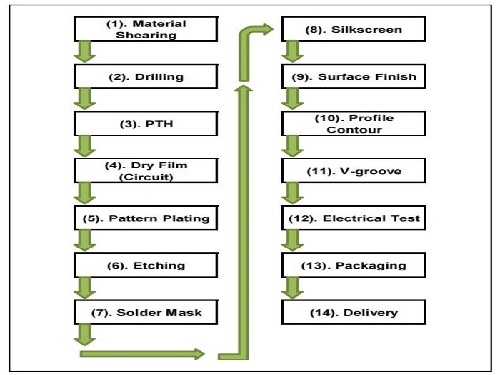

Manufacturing Process of Dual Layer PTH PCB

The immersion gold and HASL PCB are proceeding as following steps: (1). Material Shearing --> (2). Drilling --> (3). PTH --> (4). Dry Film (Circuit) --> (5). Pattern Plating --> (6). Etching --> (7). Solder Mask --> (8). Silkscreen --> (9). Surface Finish --> (10). Profile Contour --> (11). V-groove --> (12). Electrical Test --> (13). Packaging -->(14). Delivery

We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
