F4B High Frequency PCB with 3.0mm Thick |
|
|
|
|
|
F4B series high frequency material is mainly PTFE glass fiber cloth and ceramic-filled PTFE glass fiber cloth etc. It is a series of high frequency materials of Chinese brand, which is cheap in price and stable in quality. It's widely applied to navigation, radar, satellite communication, 4G communications, 5G communications and the like. |
|
|
|
|
|
The main specifications of this board is Double sided board, F4B dk2.2, 25 x 26mm, 3.0mm thick, no solder mask no silkscreen, 1oz, HASL Lead free. |
|
|
PCB Specifications |
|
|
| |
| Layer count: |
Double sided |
| Base material: |
F4B DK 2.2 |
| Dimension: |
35 x 36mm |
| Finished thickness: |
3.0mm ±10% |
| Finished Copper weight: |
1oz |
| SMOBC: |
No solder mask |
| Surface finish: |
HASL Pb free |
|
|
|
|
|
|
|
Let’s see its stack up. |
|
|
|
|
|

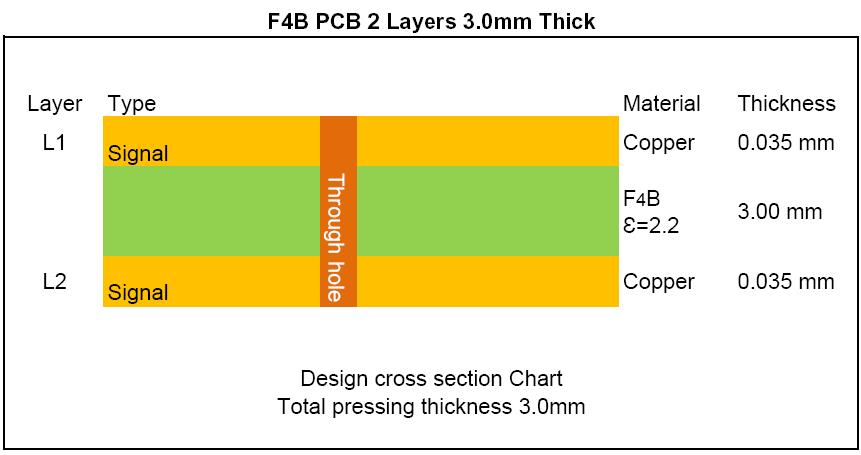

Top layer and bottom layer are 1oz copper finished. F4b dielectric material is in the middle of 2 layers copper, showing dielectric constant at 2.2, 3.0mm thick. |
|
|
|
|
|
|
|
|

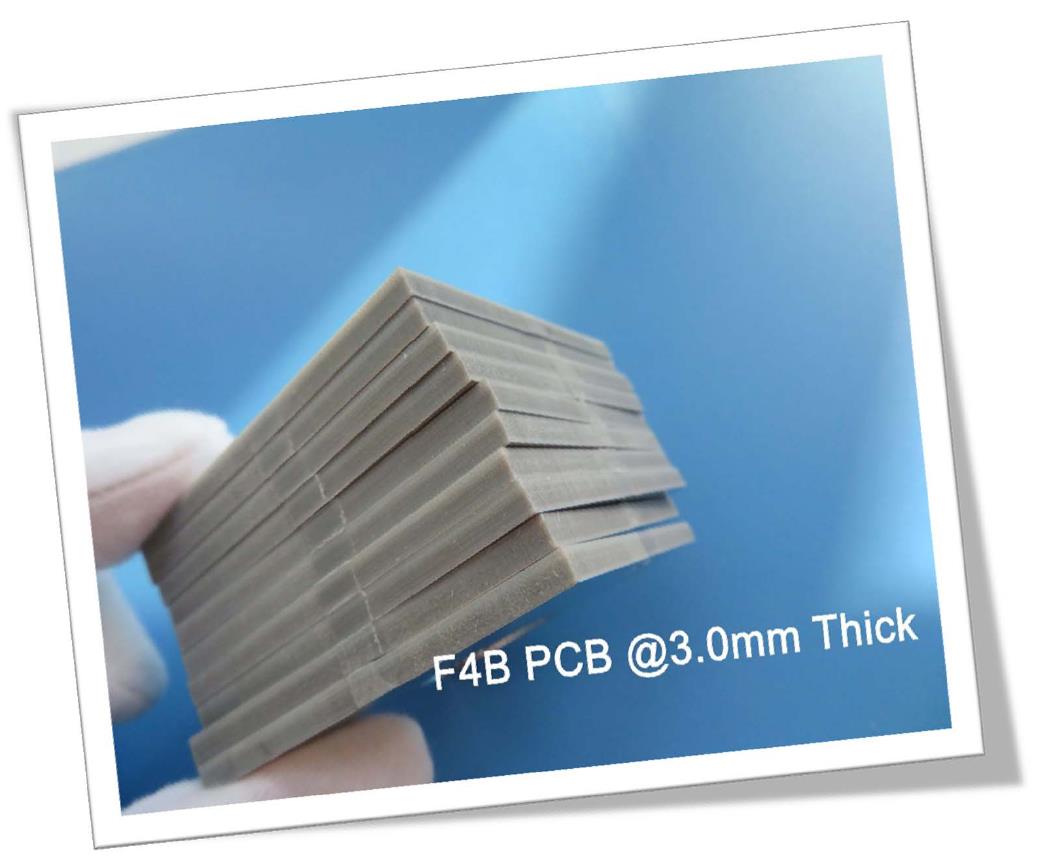

This is the photo of this board. The basic colour of F4B PCB is brown. |
|
|
|
|
|
The dielectric constant of F4B material is wide, ranging 2.2 to 3.0 etc. Board thickness ranges 0.17mm to 5.0mm. We can provide you with prototype service, small batches and mass production service. |
|
|
PCB Capability |
|
|
| |
| PCB Material: |
PTFE |
| Designation: |
F4B series |
| Dielectric constant: |
2.2, 2.55 and 2.65, 2.17, 2.45, 2.75 and 3.0 |
| Layer count: |
1 Layer, 2 Layer, Multilayer, Hybrid type |
| Copper weight: |
0.5oz, 1oz, 2oz, 3oz |
| PCB thickness: |
0.17mm, 0.25mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm and 5.0mm, etc. |
| PCB Size: |
≤400mm X 500mm |
| Surface finish: |
Bare copper, HASL, ENIG, Immersion tin etc. |
|
|
|
|
|
|
|
