2-Layer-TLX-0-Microwave-PCB-62mil-1.575mm-Low-DK-2.45-Taconic-PCB-with-Immersion-Silver-for-RF-Applications |
|
|

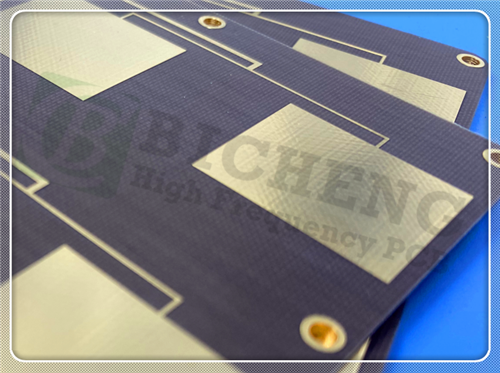

(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
TLX is a highly reliable material designed for a broad spectrum of RF applications, making it a versatile choice for engineers. With a dielectric constant (DK) range of 2.45 to 2.65, along with various thicknesses and copper cladding options, TLX is particularly well-suited for low-layer-count microwave designs.
As a PTFE-based fiberglass laminate, TLX excels in demanding applications such as radar systems, mobile communication devices, microwave test equipment, transmission systems, and RF components. Its robust construction ensures consistent performance even in the most challenging environments.
TLX stands out as a dependable substrate in the RF and microwave industry, offering exceptional mechanical reinforcement. It is engineered to withstand harsh conditions, including resistance to creep in PCBs mounted in high-vibration environments, such as during space launches. It also performs reliably under high temperatures in engine modules, resists radiation in space applications, and endures extreme conditions in naval antenna systems. Additionally, TLX is an excellent choice for altimeters that experience significant temperature fluctuations during flight. Its durability and adaptability make it a trusted material for critical RF and microwave applications. |
|
|
.png) |
|
|
|
|
|
The TLX family encompasses TLX-0 (dk 2.45), TLX-9 (dk 2.50), TLX-8 (dk 2.55), TLX-7 (dk 2.60), and TLX-6 (dk 2.65). Each variant offers distinct dielectric thickness ranges: TLX-0 spans 0.127 mm to 6.35 mm (5 mil–250 mil), TLX-9 ranges from 0.05 mm to 6.35 mm (2 mil–250 mil), TLX-8 covers 0.064 mm to 6.35 mm (2.5 mil–250 mil), while both TLX-7 and TLX-6 share a thickness range of 0.089 mm to 6.35 mm (3.5 mil–250 mil). |
|
|
|
|
|
Benefits: |
|
|
Excellent mechanical & thermal properties
Low & stable DK
Dimensionally stable
Low moisture absorption
UL 94 V-O rating
Tightly controlled DK
Low DF
For low layer count microwave designs |
|
|
|
|
|
Applications: |
|
|
Antennas
Couplers, Splitters, Combiners,
Amplifiers, Mixers, Filters
Passive components |
|
|
|
|
|
PCB Specifications |
|
|
Taconic TLX-0 62mil 1.575mm RF Antenna PCB TLT-0 High Frequency PCB for Antennas |
|
|
PCB SIZE |
135 x 66mm=1PCS |
BOARD TYPE |
Double sided PCB |
Number of Layers |
2 layers |
Surface Mount Components |
YES |
Through Hole Components |
NO |
LAYER STACKUP |
copper ------- 35um(1 oz)+plate TOP layer |
|
TLX-0 1.575mm |
|
copper ------- 35um(1oz) + plate BOT Layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
7 mil / 7 mil |
Minimum / Maximum Holes: |
0.4mm/2.0mm |
Number of Different Holes: |
N/A |
Number of Drill Holes: |
N/A |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
0 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
TLX-0 1.575mm |
Final foil external: |
1.5 oz |
Final foil internal: |
N/A |
Final height of PCB: |
1.6 mm ±10% |
PLATING AND COATING |
|
Surface Finish |
HASL Lead Free |
Solder Mask Apply To: |
Bottom, 12micron Minimum |
Solder Mask Color: |
Green, PSR-2000GT600D, Taiyo Supplied. |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
Bottom |
Colour of Component Legend |
White, IJR-4000 MW300, Taiyo brand |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
N/A |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
DK TLX-0 PCB |
|
|
Type |
DK |
TLY-5A |
2.17 |
TLY-5 |
2.20 |
TLY-3 |
2.33 |
TLT-0 |
TLX-0 |
2.45 |
TLT-9 |
TLX-9 |
2.50 |
TLT-8 |
TLX-8 |
2.55 |
TLT-7 |
TLX-7 |
2.60 |
TLT-6 |
TLX-6 |
2.65 |
TLE-95 |
2.95 |
TLC-27 |
2.75 |
TLC-30 |
RF-30 |
3.00 |
TLC-32 |
3.20 |
TLF-35 |
3.50 |
TLF-35-xxxx-A |
3.50 |
RF-35 |
RF-35A2 |
3.50 |
TRF-41 |
4.10 |
TRF-43 |
4.30 |
TRF-45 |
4.50 |
RF-60A |
6.15 |
CER-10 |
10 |
|
|
|
|
|
|
|
|
|
|
|
