2-Layer-0.25mm-Flexible-PCB--Stainless-Steel-Stiffener-Reinforced-WiFi-Booster-Circuit-Board-from-Shengyi |
|
|
(FPC’s are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
General description of Stainless Steel Stiffener PCB |
|
|
This stainless steel-reinforced flexible printed circuit is specifically designed for WiFi booster applications, featuring a 2-layer construction with 0.25mm thickness using Shengyi base laminate material. Manufactured in compliance with IPC 6012 Class 2 standards according to provided Gerber data, the FPC incorporates durable stainless steel stiffeners at both ends to ensure optimal mechanical support while maintaining the required flexibility for the application. |
|
|
|
|
|
Parameter and Data Sheet |
|
|
Size of Flexible PCB |
20.80 X 80.17mm |
Number of Layers |
2 |
Board Type |
Flexible PCB |
Board Thickness |
0.25mm |
Board Material |
Polyimde 50µm |
Board Material Supplier |
ITEQ |
Tg Value of Board Material |
60℃ |
|
PTH Cu thickness |
≥20 µm |
Inner Iayer Cu thicknes |
N/A |
Surface Cu thickness |
35 µm |
|
|
Coverlay Colour |
Yellow |
Number of Coverlay |
2 |
Thickness of Coverlay |
25 µm |
Stiffener Material |
Stainless steel |
Stiffener Thickness |
0.3mm |
|
|
Type of Silkscreen Ink |
IJR-4000 MW300 |
Supplier of Silkscreen |
TAIYO |
Color of Silkscreen |
White |
Number of Silkscreen |
1 |
|
Peeling test of Coverlay |
No peelable |
Legend Adhesion |
3M 90℃ No peeling after Min. 3 times test |
|
Surface Finish |
Immersion Gold |
Thickness of Nickle/Gold |
Au: 0.03µm(Min.); Ni 2-4µm |
RoHS Required |
Yes |
Famability |
94-V0 |
|
Thermal Shock Test |
Pass, -25℃±125℃, 1000 cycles. |
Thermal Stress |
Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
Function |
100% Pass electrical test |
Workmanship |
Compliance with IPC-A-600H & IPC-6013C Class 2 |
|
|
|
|
|
|
.jpg) |
|
|
|
|
|
Features and Benefits
1. Excellent flexibility
2. Reducing the volume
3. Weight reduction
4. Consistency of assembly
5. Increased reliability
6. The end can be whole soldered
7. Low cost
8. Continuity of processing
9. Competitive price
10. High technology |
|
|
|
|
|
Applications |
|
|
Toy lamp strip, industrial control touch remote control soft board, Automobile sensor flex board |
|
|
|
|
|
Stiffener |
|
|
In numerous applications involving soldered components, flexible circuits often necessitate external stiffeners (also referred to as reinforcing boards) to provide structural support. These stiffeners can be manufactured from various materials, such as PI (polyimide), polyester film, glass fiber, polymeric materials, steel foil, and aluminum shim, among others. |
|
|
|
|
|
(1)PI or Polyester |
|
|
Polyimide (PI) and polyester films represent widely adopted stiffener materials in flexible circuit board applications. These materials typically feature a thickness of 125μm (5mil), a dimension chosen to balance flexibility with structural integrity by imparting a measurable degree of rigidity to the otherwise pliable substrate. |
|
|
|
|
|
(2)Glass fibers |
|
|
Glass fibers, including FR-4, serve as frequently utilized stiffener materials in flexible circuit board applications. These fiberglass stiffeners exhibit greater rigidity compared to PI or polyester alternatives, making them suitable for applications demanding enhanced structural robustness. Their thicknesses generally span from 125μm (5mil) up to 3.175mm (125mils), offering versatility in design. However, fiberglass presents greater manufacturing challenges compared to PI, and it might not be a standard inventory item for all FPC manufacturers due to these processing complexities. |
|
|
|
|
|
(3)Polymer |
|
|
Polymeric materials, including plastics, are also utilized as stiffeners. These materials are noted for their low water absorption properties and their ability to withstand high pressure and elevated temperatures, making them suitable for applications requiring durability under challenging environmental conditions. |
|
|
|
|
|
(4)Steel foil, aluminum shim |
|
|
Steel foil and aluminum shim provide robust structural rigidity and offer effective heat dissipation capabilities. In design considerations, these materials are primarily selected for their high hardness characteristics or their ability to manage thermal transfer, depending on the specific requirements of the application. |
|
|
|
|
|

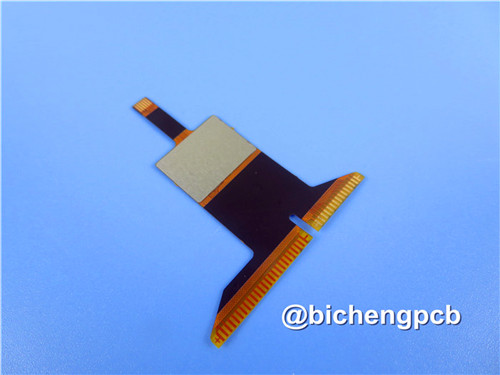

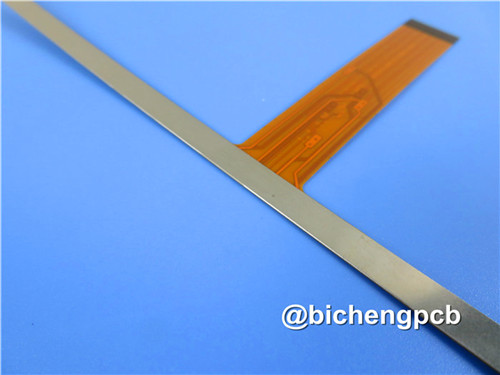

More Displays of Stainless Steel Stiffener |
|
|
.jpg) |
|
|
|
|
|
.jpg) |
|
|
|
|
|
|
|
|
|
|
|
