10mil-Rogers-RO4350B-4-Layer-High-Frequency-PCB: Dual-Core-Design-with-Immersion-Gold-for-Wireless-Antenna-Systems |
|
|
|
|
|
(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hello, everyone!
This 4-layer PCB is constructed using two 10mil RO4350B cores bonded with a single sheet of RO4450F prepreg. To meet specific signal transmission requirements, the prepreg thickness can be adjusted to 1 sheet (4mil), 2 sheets, or 3 sheets. Designed for wireless antenna systems, the board features a total thickness of 0.80 mm, with white legend on a green solder mask applied to both sides and immersion gold finish on all pads. Fabricated in compliance with IPC 6012 Class 2 standards using provided Gerber data, these PCBs are packed in sets of 25 panels per shipment. Ideal for high-frequency applications, this design ensures exceptional performance, reliability, and precision. |
|
|
|
|
|
 |
|
|
|
|
|

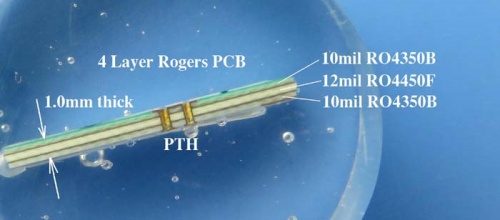

To accommodate specific application requirements, the prepreg can be customized with additional plies. For instance, the micro-section below illustrates a configuration using 3 plies of RO4450F prepreg. |
|
|
|
|
 |
|
|
|
Parameter and data sheet |
|
4 Layer High Frequency PCB Built On 10mil RO4350B with Immersion Gold for Wireless Antenna System |
|
|
PCB SIZE |
120 x 120mm=1PCS |
BOARD TYPE |
Multilayer PCB |
Number of Layers |
4 layers |
Surface Mount Components |
YES |
Through Hole Components |
YES |

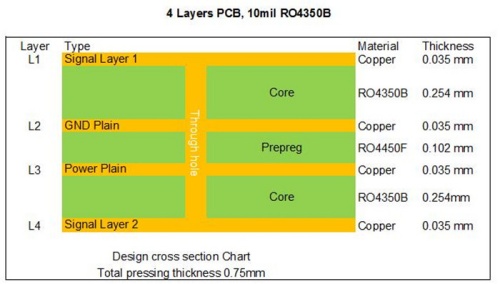

LAYER STACKUP |
copper ------- 35um(1 oz)+plate TOP layer |
RO4350B 0.254mm |
copper ------- 35um(1oz) Mid Layer 1 |
RO4450F 0.1016mm |
copper ------- 35um(1oz) Mid Layer 2 |
RO4350B 0.254mm |
copper ------- 35um(1 oz)+plate BOT layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
5.5 mil / 6 mil |
Minimum / Maximum Holes: |
0.38 mm / 3.72 mm |
Number of Different Holes: |
8 |
Number of Drill Holes: |
489 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
4 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
RO4350B Tg280℃, er<3.48, Rogers Corp. |
Final foil external: |
1.5 oz |
Final foil internal: |
1 oz |
Final height of PCB: |
0.8 mm ±10% |
PLATING AND COATING |
|
Surface Finish |
Immersion Gold |
Solder Mask Apply To: |
TOP, 12micron Minimum |
Solder Mask Color: |
Green, PSR-2000GT600D, Taiyo Supplied. |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
TOP |
Colour of Component Legend |
White, IJR-4000 MW300, Taiyo brand |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
Plated through hole(PTH), minimum size 0.42mm. |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
Features and benefits |
|
|
1. RO4350B exhibits excellent high - frequency performance.
2. It features low dielectric tolerance and loss.
3. Our factory is certified to ISO9000, ISO14001, and IATF16949 standards.
4. We have a monthly production capacity of 30,000 square meters.
5. We can produce 8,000 different types of PCBs per month. |
|
|
|
|
|
Applications |
|
|
Splitter HDMI, 3G Router, Bluetooth Module, WiFi Amplifier, Bluetooth USB Dongle, Low noise amplifier, Interference filter, Tower-mounted booster, Multi-coupler |
|
|
|
|
|
