(As PCBs are custom - produced goods, the picture and parameters shown are only intended for reference.) |
|
|
|
|
|
Hello, everyone!
Warm greetings to you all.
Today, we're diving into the world of 6 - layer hybrid PCBs constructed using RO4350B and FR - 4 materials. Let's start by taking a look at the first one. |
|
|
|
|
|
 |
|
|
|
|
|

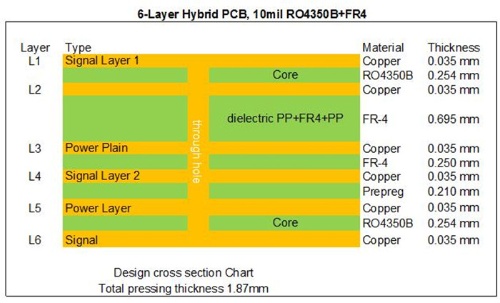

This PCB is designed for radar antenna applications, featuring a hybrid construction with RO4350B cores on both the top and bottom sides. Plated through-holes (PTH) ensure reliable interlayer connections across all layers. Based on the stack-up design, each dielectric layer exceeds 0.2mm in thickness, contributing to an overall PCB thickness of 1.9mm. The pads and holes are coated with immersion gold for enhanced durability and performance. Manufactured in compliance with IPC 6012 Class 2 standards, the boards are produced using provided Gerber files. For shipping convenience, the PCBs are packed in sets of 25 panels per shipment. |
|
|
|
|
 |
|
|
|
|
Let’s see second one. |
|
|
 |
|
|
|
|
|

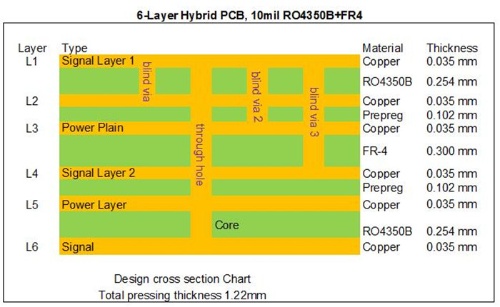

This design is more intricate compared to the previous version. While it retains the 10mil RO4350B core, the key distinction lies in the incorporation of three distinct types of blind vias. The detailed specifications are outlined below: |
|
|
|
|
|
Base material: RO4350B 10mil + FR4
Layer count: 6 layers
Type: Blind via L1-L2, L1-L3, L1-L4
Format: 82mm x 95mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 35 μm
Solder mask / Legend: No
Final PCB height: 1.4 mm
Standard: IPC 6012 Class 2
Packing: 20 panels are packed for shipment.
Lead time: 20 working days
Shelf life: 6 months |
|
|
|
|
|

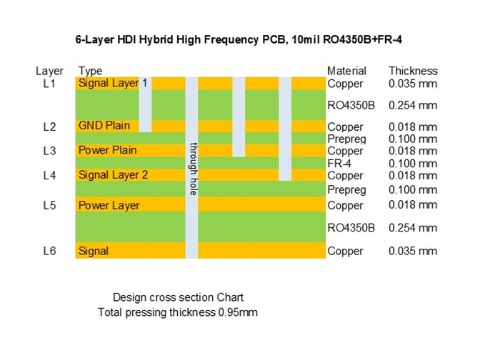

A comparable product features inner layers constructed with half-ounce copper, resulting in a finished PCB thickness of 1.0mm. Below are the detailed stack-up and microsection analysis. |
|
|
 |
|
|
|
|
|
 |
|
|
|
|
|
RO4350B hybrid PCBs offer numerous benefits |
|
|
1) Signal integrity performance improved over the stack-ups with all FR4 board;
2) Cost reduced over stack-ups with all low loss material;
3) Engineering design prevents problems from occurring in pre-production;
4) ISO9000, ISO14001, IATF16949, UL Certified factory
5) IPC Class 2 / IPC Class 3; |
|
|
|
|
|
Applications |
|
|
These products have a diverse range of applications, which are as follows: radar data acquisition converters, microstrip antennas, tower - mounted boosters, modular oscilloscopes, attenuators, 5G antennas, and so on.
Thank you for taking the time to read this. If you have any inquiries regarding RF PCBs, please feel free to contact us. |
|
|
|
|
|
Appendix: PCB Data Sheet |
|
|
6 Layer Mixed PCB Built On 10mil 0.254mm RO4350B and FR-4 with Blind Via for Digital Radio Antennas |
|
|
PCB SIZE |
75 x 110mm=1PCS |
BOARD TYPE |
Multilayer PCB |
Number of Layers |
6 Layers |
Surface Mount Components |
YES |
Through Hole Components |
No |
LAYER STACKUP |
Copper ------- 35um(1 oz)+plate TOP layer |
|
Dielectric RO4350B 0.254mm (10 mil) |
|
Copper ------- 35um(1oz) |
|
PP+FR4+PP 0.695mm |
|
Copper ------ 35um (1oz) |
|
FR-4 0.25mm |
|
Copper ------ 35um (1oz) |
|
PP 0.21mm |
|
Copper ------35um (1oz) |
|
Dielectric RO4350B 0.254mm (10 mil) |
|
Copper ------- 35um(1 oz)+plate BOT layer |
TECHNOLOGY |
|
Minimum Trace and Space: |
4 mil / 5 mil |
Minimum / Maximum Holes: |
0.3 mm / 2.0 mm |
Number of Different Holes: |
12 |
Number of Drill Holes: |
167 |
Number of Milled Slots: |
0 |
Number of Internal Cutouts: |
3 |
Impedance Control: |
no |
Number of Gold finger: |
0 |
BOARD MATERIAL |
|
Glass Epoxy: |
RO4350B Tg280℃, er<3.48, Rogers Corp. FR-4 IT158 |
Final foil external: |
1.5 oz |
Final foil internal: |
1 oz |
Final height of PCB: |
1.8 mm ±0.18mm |
PLATING AND COATING |
|
Surface Finish |
Immersion gold |
Solder Mask Apply To: |
TOP, 12micron Minimum |
Solder Mask Color: |
Green, PRS-2000GT600D, Taiyo Supplied. |
Solder Mask Type: |
LPSM |
CONTOUR/CUTTING |
Routing |
MARKING |
|
Side of Component Legend |
TOP |
Colour of Component Legend |
White, IJR-4000 MW300, Taiyo brand |
Manufacturer Name or Logo: |
Marked on the board in a conductor and leged FREE AREA |
VIA |
Plated through hole(PTH), minimum size 0.3mm. Blind via L1-L2, L3-L6 |
FLAMIBILITY RATING |
UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE |
|
Outline dimension: |
0.0059" |
Board plating: |
0.0029" |
Drill tolerance: |
0.002" |
TEST |
100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED |
email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA |
Worldwide, Globally. |
|
|
|
|
|
|
