0.813mm-4-Layer-Rogers-PCB-with-32mil-RO4003C-and-12mil-RO4450F-Cores-for-Premium-Ultrahigh-Frequency-Coupler-Solutions |
|
|
(Printed Circuit Boards are custom-made products. The picture and parameters shown are for reference only.) |
|
|
|
|
|
Hello everyone,
Good day!

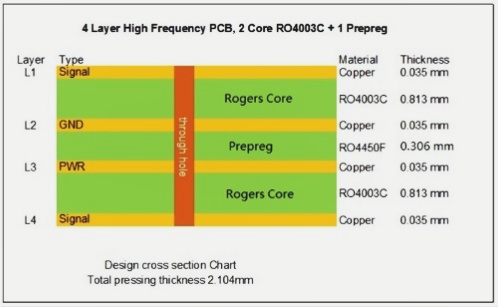

Today, we’re highlighting a 4-layer high-frequency PCB designed for ultrahigh-frequency coupler applications. This PCB is constructed using 2 cores of 0.813mm (32mil) RO4003C and 1 sheet of RO4450F prepreg, ensuring exceptional performance for high-frequency needs. Below, you’ll find the detailed stack-up for reference. |
|
|
|
|
|
 |
|
|
|
|
|
Multilayer Rogers high-frequency PCBs are typically constructed entirely from high-frequency materials, including specialized prepreg adhesives. As widely recognized, the RO4003C family offers six core thickness options, ranging from 8mil (0.203mm) to 60mil (1.524mm), providing flexibility for various design requirements. |
|
|
|
|
|
RO4003C: |
|
8mil |
0.203mm |
12mil |
0.305mm |
16mil |
0.406mm |
20mil |
0.508mm |
32mil |
0.813mm |
60mil |
1.524mm |
|
|
|
It’s fascinating to see how a 4-layer stack-up can be designed in numerous ways to meet diverse requirements. |
|
|
|
|
|
Following is the basic specifications. |
|
|
Base material: RO4003C 32mil + RO4450F 12mil PP
Layer count: 4 layers
Type: Castellation holes (half holes) on edge
Format: 113mm x 80mm = 1 type = 4 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 35 μm
Solder mask / Legend: no / no
Final PCB height: 2.1 mm
Standard: IPC 6012 Class 2
Packing: 20 panels are packed for shipment.
Lead time: 10 working days
Shelf life: 6 months |
|
|
|
|
|
Here are the key features and benefits you can enjoy: |
|
|
1. Superior High-Frequency Performance: Achieved through low dielectric tolerance and minimal signal loss.
2. Advanced AOI Inspection: Ensures top-quality and reliability.
3. End-to-End Solutions: From prototypes to mass production, we cater to all your PCB needs.
4. High Production Capacity: 30,000 square meters per month.
5. Diverse Product Range: Capable of producing 8,000 types of PCBs monthly.
6. Proven Expertise: Over 16 years of experience in PCB manufacturing. |
|
|
|
|
|
Typical applications: |
|
|
GPS antenna, WiFi amplifier, Power amplifier, RF transceiver, TV antenna, Radar data acquisition converter, Spread spectrum, Attenuator |
|
|
|
|
|
Appendix: RO4003C Datasheet |
|
|
RO4003C Typical Value |
Property |
RO4003C |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
3.38±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant,εDesign |
3.55 |
Z |
|
8 to 40 GHz |
Differential Phase Length Method |
Dissipation Factortan,δ |
0.0027
0.0021 |
Z |
|
10 GHz/23℃
2.5 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
+40 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
1.7 x 1010 |
|
MΩ.cm |
COND A |
IPC-TM-650 2.5.17.1 |
Surface Resistivity |
4.2 x 109 |
|
MΩ |
COND A |
IPC-TM-650 2.5.17.1 |
Electrical Strength |
31.2(780) |
Z |
Kv/mm(v/mil) |
0.51mm(0.020") |
IPC-TM-650 2.5.6.2 |
Tensile Modulus |
19,650(2,850)
19,450(2,821) |
X
Y |
MPa(ksi) |
RT |
ASTM D 638 |
Tensile Strength |
139(20.2)
100(14.5) |
X
Y |
MPa(ksi) |
RT |
ASTM D 638 |
Flexural Strength |
276
(40) |
|
MPa
(kpsi) |
|
IPC-TM-650 2.4.4 |
Dimensional Stability |
<0.3 |
X,Y |
mm/m
(mil/inch) |
after etch+E2/150℃ |
IPC-TM-650 2.4.39A |
Coefficient of Thermal Expansion |
11
14
46 |
X
Y
Z |
ppm/℃ |
-55℃to288℃ |
IPC-TM-650 2.4.41 |
Tg |
>280 |
|
℃ TMA |
A |
IPC-TM-650 2.4.24.3 |
Td |
425 |
|
℃ TGA |
|
ASTM D 3850 |
Thermal Conductivity |
0.71 |
|
W/M/oK |
80℃ |
ASTM C518 |
Moisture Absorption |
0.06 |
|
% |
48hrs immersion 0.060"
sample Temperature 50℃ |
ASTM D 570 |
Density |
1.79 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
Copper Peel Stength |
1.05
(6.0) |
|
N/mm
(pli) |
after solder float 1 oz.
EDC Foil |
IPC-TM-650 2.4.8 |
Flammability |
N/A |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
|
|
 |
|
|
|
Thank you for reading! We’re here to assist with all your PCB needs—feel free to reach out for any inquiries or support. |
|
|
|
|
