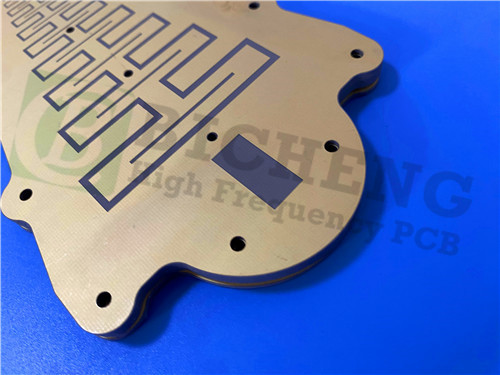

TACONIC's RF10 High Frequency 2 Layer 25mil High TC 0.85 DK10.2 PCB
|
|
|
|
|
|
|
|
RF-10 copper clad laminates are composites of ceramic filled PTFE and woven fiberglass. RF-10 has the advantage of high dielectric
constant and low dissipation factor. Thin woven fiberglass reinforcement is used to offer both low dielectric loss and improved rigidity for ease of handling and improved dimensional stability for multilayer circuits.
RF-10 laminates are engineered to provide a cost effective substrate with industry acceptable delivery times. |
|
|
|
2. Features (RF-10)
- Dielectric Constant of 10.2 ± 0.3 at 10GHz
- Dissipation Factor of 0.0025 at 10GHz
- High Thermal Conductivity of 0.85 W/mk (Unclad)
- x CTE of 16 ppm/°C, y CTE of 20 ppm/°C, z CTE of 25 ppm/°C
- Low Moisture Absorption of 0.08%
- Flammability Rating of V-0 |
|
|
|
3. Benefits
- High DK for RF circuit size reduction
- Excellent dimensional stability
- Tight DK tolerance (10.2 +/- 0.3)
- High thermal conductivity for enhanced thermal management
- Excellent adhesion to smooth coppers
- Low X, Y, Z expansion
- Excellent price/performance ratio |
|
|
|
4. PCB Stackup: 2-layer rigid PCB
Copper_layer_1 - 35μm (1oz)
RF-10 Core - 25mil (0.635mm)
Copper_layer_2 - 35μm (1oz) |
|
|
|
|
|
| 5. PCB Construction details: |
- Board dimensions: 163.9mm x 104.9mm=2Types =2PCS, +/- 0.15mm
- Minimum Trace/Space: 4/4 mils
- Minimum Hole Size: 0.5mm
- No Blind vias.
- Finished board thickness: 0.75mm
- Finished Cu weight: 1oz (1.4 mils) outer layers
- Via plating thickness: 20 μm
- Surface finish: Immersion Tin
- Top Silkscreen: White
- Bottom Silkscreen: No
- Top Solder Mask: Green
- Bottom Solder Mask: No
- 100% Electrical test used prior to shipment |
| |
|
 |
|
|
|
|
6. PCB Statistics:
Components: 16
Total Pads: 59
Thru Hole Pads: 24
Top SMT Pads: 35
Bottom SMT Pads: 0
Vias: 39
Nets: 2 |
|
|
|
7. Type of artwork supplied: Gerber RS-274-X
|
|
|
8. Quality standard: IPC-Class-2 |
|
|
|
9. Availability: worldwide |
|
|
|
10. Applications
- Microstrip Patch Antennas
- GPS Antennas
- Passive Components (filters, couplers, power dividers)
- Aircraft Collision Avoidance Systems
- Satellite components |
|
|
|
|
|
|
|
