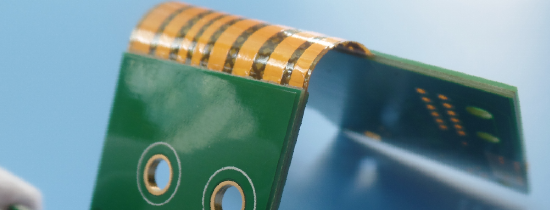

4-Layer Rigid Flexible PCB

  1.1 General description
  This is a type of rigid flex PCB for the application of Portable Sound Systems. It’s a 4 layer PCB with flexible part in the middle. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.

  1.2 Features and benifits
  1. Excellent flexibility
2. Reducing the volume
3. Weight reduction
4. Consistency of assembly
5. Increased reliability
6. Controllability of electrical parameter design
7. The end can be whole soldered
8. Material optionality
9. Low cost
10. Continuity of processing
11. Professional and experienced engineers

  1.3 Applications
  Instrument panel, Mobile phone camera flex board, Tablet antenna soft board

  1.4 Parameter and data sheet

Base Material: FR-4 1.6mm / Polyimide 25μm
Copper Weight: 1 oz each layer
Board Thickness: 1.6 mm ±10%
Layer Count: 4 layers
Board Size: 60.22 X 132.27mm =1PCS
Solder Mask: Green solder mask | white silkscreen
Surface Finish: Immersion gold
Via: via tented
Warpage: ＜0.75%
Net Weight: 0.071 kg/pcs
Acceptable Standard: IPC-Class-2
Lead time for prototype: 10 working days
Shelflife: 6 months









　
