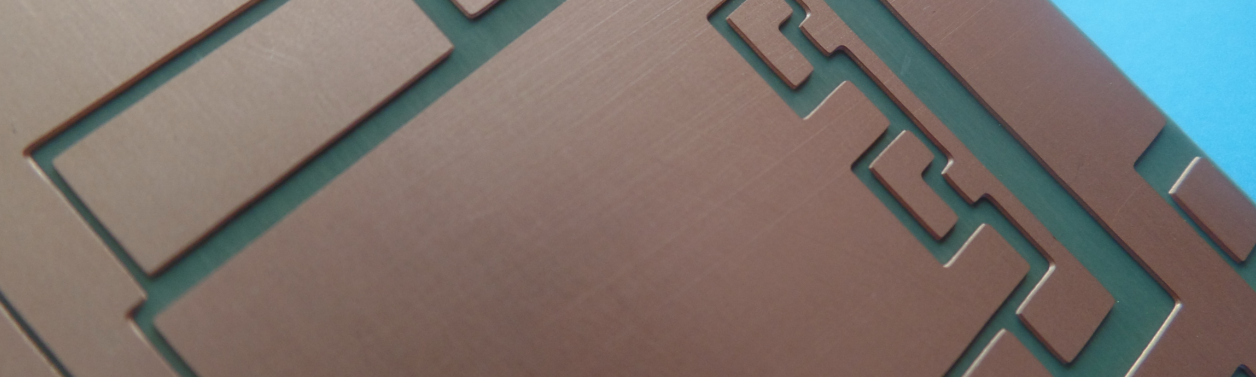

Aluminum PCB With 8 oz Copper Weight

  1.1 General description
  This is a type of heavy copper single sided aluminum PCB board at 1.2mm thick for the application of high current and high temperature dissipation. The base laminate is from ITEQ with 8 oz copper. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed separately.

  1.2 Features and benifits
  1. Optimization combination of power circuit and control circuit,
2. Replace the fragile ceramic substrate and obtain a better mechanical durability,
3. Effective heat diffusion in the design of the circuit,
4. Reduce the operating temperature of the equipment,
5. Improve the power density and reliability of the device,
6. Prolong the service life of the product,
7. High voltage test, Impedance control test, micro-section, solder-ability test,
8. Strict WIP inspection and monitoring as well as working instruction,
9. Right manufacturing instruction (MI),
10. Great customer service

  1.3 Applications
  Industrial and mining lamps,Automotive ignitor,Security system,audio amplifier

  1.4 Parameter and data sheet

Base Material: Aluminum Core
Copper Weight: 8 oz each layer
Board Thickness: 1.2 mm ±10%
Layer Count: 1 layer
Board Size: 85 x 67 mm =1up
Solder Mask: No solder mask | no silkscreen
Surface Finish: OSP
Via: NO
Warpage: ＜0.75%
Net Weight: 0.11 kg/pcs
Acceptable Standard: IPC-Class-2
Lead time for prototype: 10 working days
Shelflife: 6 months









　
