Fast PCB Prototypes Built on High Tg170 FR-4 With Immersion Gold

  1.1 General description

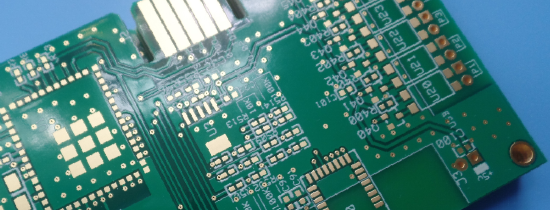

  This is a type of 4 layer printed circuit board built on FR-4 Tg170 substrate for the application of Tracking System. It's 1.6 mm thick with white silkscreen on green solder mask and immersion gold on pads. The base material is from ITEQ supplying 1 up single board. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed for shipment.

  1.2 Features and benifits


1. It's suitable for handheld and consumer applications.
2. Long storage time ( It can be stored for more than 1 year in vacuum bag)
3. PCB manufacturing on required specifications.
4. Team with passion, discipline, responsibility and honesty.
5. Volume Production capability
6. 8000 types of PCB's per month
7. UL, ISO14001, IATF16949 certified
8. Professional and experienced engineers check your production files
9. Delivery on time: >98%


  1.3 Applications
  WiFi Booster, Satellite Receiver, Wireless Dongle, Wireless Antenna, Video Surveillance Systems, DC-AC Converter, Vehicle Trackers, Industrial Communications, Security Electronics, Space probe equipment

  1.4 Parameter and data sheet

Base Material: FR-4 Tg170°C
Copper Weight: 1 oz each layer
Board Thickness: 1.6 mm ±10%
Layer Count: 4 layers
Board Size: 79.25 x 99.82mm=1UP
Solder Mask: Green solder mask | white silkscreen
Surface Finish: Immersion gold
Via: via tented
Warpage: ＜0.75%
Net Weight: 0.18 kg/pcs
Acceptable Standard: IPC-Class-2
Lead time for prototype: 3 working days
Shelflife: 6 months









　
