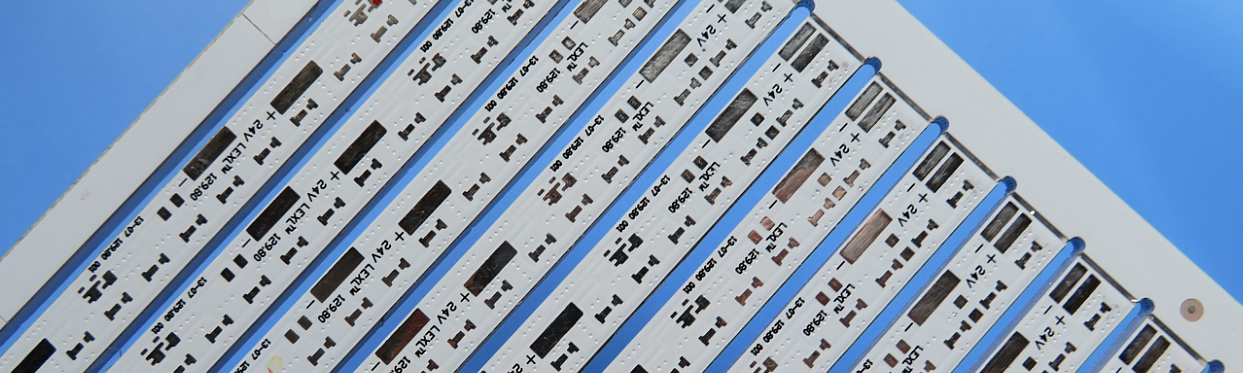

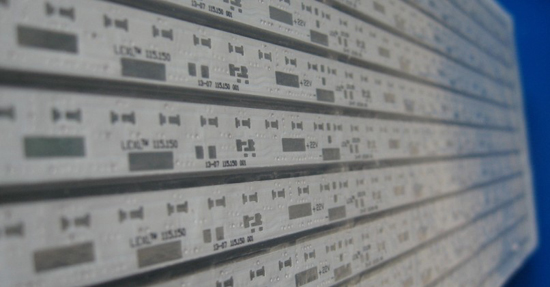

Double Layer PCB Built On Aluminum Base

  1.1 General description
  This is a type of Aluminum PCB for the application of RGB Led Lighting. It's a 2 layer IMS PCB board at 2.1mm thick, 2W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

  1.2 Features and benifits
  SMT process.
Effective heat dissipation reduces the operating temperature of the module and prolongs the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
PCB manufacturing strictly as per required specifications.
Right manufacturing instruction (MI),
Comprehensive equipment management and maintenance and process control,
International approvals,
Great customer service,
Diversified shipping method.

  1.3 Application
  Aluminum PCB for Audio equipment, Switch regulator, Electronic regulator, Automobile lamp

  1.4 Parameter and data sheet

Base Material: 2 W/MK aluminium core
Copper Weight: 2 oz each layer
Board Thickness: 3.2 mm ±10%
Layer Count: 2 layers
Board Size: 500 x 150 mm =10up
Solder Mask: White solder mask | black silkscreen
Surface Finish: HASL lead free
Via: via tented
Warpage: <0.75%
Net Weight: 0.508 kg/panel
Acceptable Standard: IPC-Class-2
Lead time for prototype: 10 working days
Shelflife: 6 months
