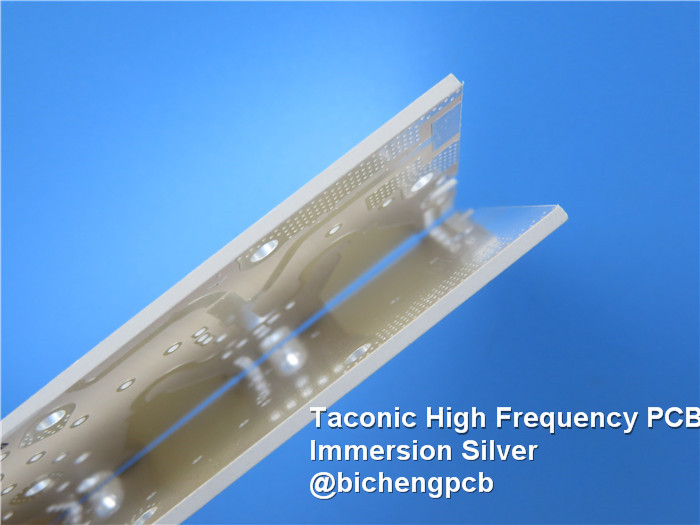

Taconic RF-60A High Frequency PCB

RF-60A is an organic-ceramic laminate in the ORganic CERamic(ORCER) family of Taconic products. It's based on woven glass reinforcement. It is a result of Taconic's expertise in both ceramic fill technology and in coated PTFE fiberglass. RF-60A exhibits exceptional interlaminar bond strength and solder resistance. Its proprietary composition results in low moisture absorption and uniform electrical properties.

RF-60A's woven glass reinforcement ensures excellent dimentional stability and enhances flexural strength. It exhibits low Z-axis expansion allowing for plated-through-hole reliablity in extreme thermal environments. With a dielectric constant of approximately 6.15, it is ideal high DK products for applications requiring reduced circuit size and weight. The low electrical loss factor makes it an excellent selection for RF circuits.

RF-60A laminates are in complete compliance with RoHS and WEEE directives and are compatible with the temperatures required for the new lead free solders. They can be sheared, drilled, milled and plated using standard methods for PTFE-woven fiberglass materials, so mass production becomes possible.

Benefits (in general):
Low Moisture Absorption
Stable DK over Frequency
Dimensionally Stable
Low Z-axis Expansion
High Flexural Strength
Exceptional Interlaminar Bonds

Typical Applications:
Power Amplifiers
Filters & Couplers
Passive Components
Antennas

Our PCB Capabilities (RF-60A)

PCB Material:	Organic-ceramic Woven Fiberglass Reinforced Laminates
Designation:	RF-60A
Dielectric constant:	6.15 ±0.25
Dissipation Factor	DF 0.0038@10 GHz
Thermal Conductivity	0.4 W/MK
Layer count:	Double Layer, Multilayer, Hybrid PCB
Copper weight:	0.5oz (17 μm), 1oz (35μm), 2oz (70μm)
Laminate thickness:	10mil (0.254mm), 25mil (0.635mm), 31mil (0.787mm), 50mil (1.27mm), 60mil (1.524mm), 125mil (3.175mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Bare copper, HASL, ENIG, OSP, Immersion tin etc..

Data Sheet of Taconic RF-60A

Property	Test Method	Unit	Value	Unit	Value
Dk @ 10 GHz	IPC-650 2.5.5.6		6.15		6.15
Df @ 10 GHz	IPC-650 2.5.5.5.1		0.0038		0.0038
Moisture Absorption	IPC-650 2.6.2.1	%	0.02	%	0.02
Dielectric Breakdown	IPC-650 2.5.6	kV	53	kV	53
Dielectric Strength	ASTM D 149	V/mil	880	kV/mm	35
Volume Resistivity	IPC-650 2.5.17.1 (After Humidity)	Mohm/cm	9.0 x 10^8	Mohm/cm	9.0 x 10^8
Surface Resistivity	IPC-650 2.5.17.1 (After Humidity)	Mohm	2.28 x 10^8	Mohm	2.28 x 10^8
Arc Resistance	IPC-650 2.5.1	Seconds	193	Seconds	193
Flexural Strength (MD)	ASTM D 790	psi	18,300	N/mm2	126.2
Flexural Strength (CD)	ASTM D 790	psi	14,600	N/mm2	100.7
Tensile Strength (MD)	ASTM D 3039	psi	19,500	N/mm2	134.4
Tensile Strength (CD)	ASTM D 3039	psi	16,300	N/mm2	112.4
Young’s Modulus	ASTM D 3039	kpsi	1,590	N/mm2	11,000
Poisson’s Ratio	ASTM D 3039		0.068	N/mm2	0.068
Compressive Modulus	ASTM D 695 (23°C)	kpsi	338		2,330
Peel Strength (1 oz. ED)	IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress)	lbs/in	8	N/mm	1.4
Dimensional Stability (MD)	IPC-650 2.4.39 Sec. 5.4 (After Bake)	mils/in	0.68	mm/M	0.68
Dimensional Stability (CD)	IPC-650 2.4.39 Sec. 5.4 (After Bake)	mils/in	1.05	mm/M	1.05
Density (Specific Gravity)	ASTM D 792	g/cm3	2.79	g/cm3	2.79
Thermal Conductivity	ASTM F 433	W/M*K	0.4	W/M*K	0.4
CTE (X axis)	ASTM D 3386 (-30°C - 125°C)	ppm/°C	9	ppm/°C	9
CTE (Y axis)	ASTM D 3386 (-30°C - 125°C)	ppm/°C	8	ppm/°C	8
CTE (Z axis)	ASTM D 3386 (-30°C - 125°C)	ppm/°C	69	ppm/°C	69
Outgassing (% TML)	ASTM E 595*	%	0.02	%	0.02
Outgassing (% CVCM)	ASTM E 595*	%	0.00	%	0.00
Outgassing (% WVR)	ASTM E 595*	%	0.01	%	0.01
Flammability Rating	UL 94		V-0		V-0
