Welcome back to our channel. My name is Jane, the regional sales manager for Bicheng PCB. Today, we’re going to talk about a type of organic-ceramic laminate from Taconic's ORCER family --- RF-35.

RF-35 laminates are PTFE-based with woven glass reinforcement. It is the consequence of Taconic's proficiency in coated PTFE fiberglass and ceramic fill technologies.

Let’s have a look at the properties of RF-35 substrate.

RF-35 Typical Properties
RF-35 has a dielectric constant of 3.50 at 1.9 GHz, with a dissipation factor of 0.0018 at the same frequency.

Its moisture absorption is only 0.02% at .060 inch,

and it has a peel strength greater than 8.0 lbs./linear inch for 1/2 oz. copper and greater than 10.0 lbs./linear inch for 1 oz. copper, as measured by IPC-TM 650 2.4.8.

The material also has a dielectric breakdown of 41 kV, volume resistivity of 1.26 x 10^9 Mohm/cm,

and surface resistivity of 1.46 x 10^8 Mohm, as measured by IPC-TM 650 2.5.6 and IPC-TM 650 2.5.17.1, respectively.

RF-35 has an arc resistance of greater than 180 seconds, as measured by IPC TM 650 2.5.1.

Its flexural strength lengthwise and crosswise are greater than 22,000 psi and greater than 18,000 psi, respectively, as measured by ASTM D 790.

The tensile strength lengthwise and crosswise are measured at 27,000 psi (or 187 N/mm^2) and 21,000 psi (or 145 N/mm^2), respectively, as measured by ASTM D 638.

RF-35 has a dimensional stability of 0.00004 in/in lengthwise and a dimensional stability of -0.00010 in/in crosswise, as measured by IPC-TM 650 2.4.39.

RF-35 is high Tg materials, with value of greater than 315°C.

The material has a thermal conductivity of 0.24 W/m/K, as measured by ASTM F 433.

Its X-Y CTE is measured between 19-24 ppm/°C, while its Z CTE is measured at 64 ppm/°C, as measured by ASTM D 3386 (TMA).

The material is also rated V-0 for flammability, as measured by UL-94, and has a hardness of 34% on the Rockwell M scale.

PCB Capability (RF-35)
Let’s see our PCB capability on RF-35 material.

We can provide you with single layer, double layer, multi-layer and hybrid types, with standard dielectric thicknesses of 10 mils, 20 mils, 30 mils, and 60 mils.

The finished copper thickness options are 1oz and 2oz.

We can offer PCBs up to a maximum size of 400 mm by 500 mm. This can be a single board in the panel or a panel with multiple alternative designs.

Solder mask of green, black, blue and yellow etc is available in house.

Various options for plating pads are provided, including immersion gold, HASL, immersion silver, immersion tin, OSP, pure gold, and bare copper etc.

Various options for plating pads are provided, including immersion gold, HASL, immersion silver, immersion tin, OSP, pure gold, and bare copper etc.

A Piece of RF-35 PCB

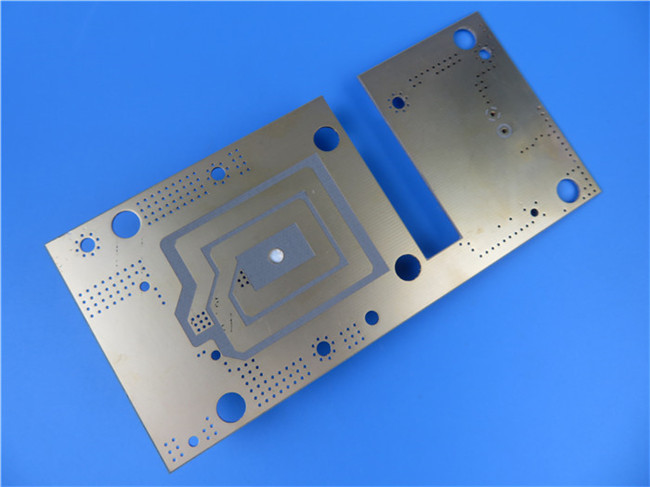

On the screen is a type of 60mil RF-35 PCB with immersion gold for power amplifiers. We can also find its applications in passive components, filters and couplers etc.

Conclusion
Due to the softness of the PTFE resin system, machining of PTFE-based substrates is often more challenging than machining of epoxy-based substrates. The type of fiberglass utilized in the substrate has an impact on the quality of routing with respect to burrs and fibers. The heavier the fiberglass weave, the more difficult it is to cut.

RF-35 product employs a heavy weight 7628 glass style, which offers good dimensional stability and rigidity but is typically more challenging to drill or rout compared to the product which uses a medium weight glass style.

OK. This concludes the episode. Thank you for your reading. See you next time.
