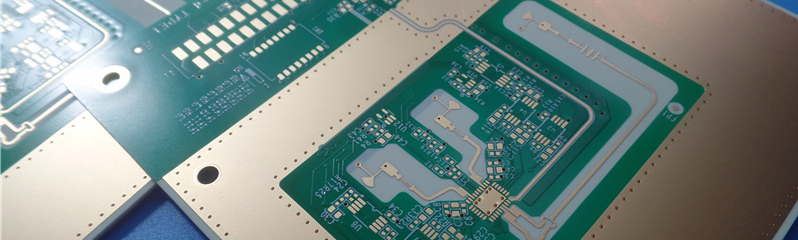

High Frequency PCB Built on RO4350B and FR-4 Mix

  1.1 General description
  This is a type of high layercount RF PCB built on RO4350B and FR-4 for the application of transmitter. It's a 10 layer high frequency PCB board at 1.7 mm thick. It's immersion gold finish with red solder mask and white silkscreen. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 boards are packed for shipment.

  1.2 Features and benifits
  Good high temperature and low temperature resistance.(-192℃-260℃)
Superior corrosion resistance.
No corrosion in acids, alkali and aqua regia.
SMT process is resistant to reflow soldering, resistant to rework due to gold pads.
Cutting-edge technology
Help you focus on your core competencies on research and development, sales and marketing.
1-10 pieces are offered .
International approvals
Great customer service


  1.3 Application
  Preamplifier, WiFi amplifier, Relay Stations, RF transceiver

  1.4 Parameter and data sheet

Base Material: RO4350B, RO4450B mixed with FR-4 TG>135
Copper Weight: 1 oz / 0.5 oz
Board Thickness: 1.7 mm ±10%
Layer Count: 10 layers
Board Size: 210 x 85mm=1PCS
Solder Mask: Green solder mask | white silkscreen
Surface Finish: Immersion Gold (17.7%) 2μ" over 100μ" nickel
Via: via tented
Warpage: <0.75%
Net Weight: 0.083 kg/pcs
Acceptable Standard: IPC-Class-2
Lead time for prototype: 10 working days
Shelflife: 6 months
