Rogers 4 Layer Hybrid PCB On 20mil RO4003C and FR-4

WELCOME TO BICHENG

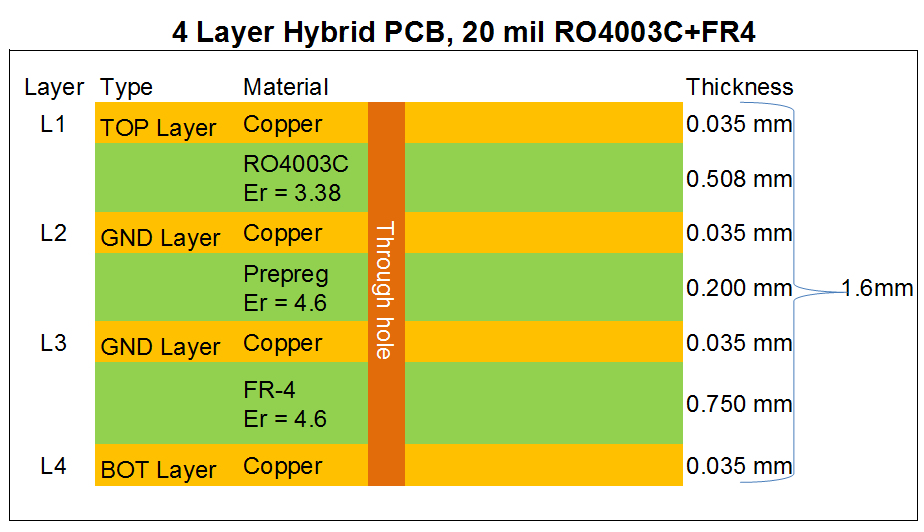

Stack-up

Firstly, it's a 4 layer structure. Layer 1 to layer 2 is 20mil Rogers core, which are the main wiring layers for the signal lines. Layer 3 to layer 4 is the FR-4 core, which is connected

by the Prepreg of FR-4. Each layer is connected by plated through holes. This is a better method to keep the board cost effective. The inner layer and out layer of copper is 1 oz.

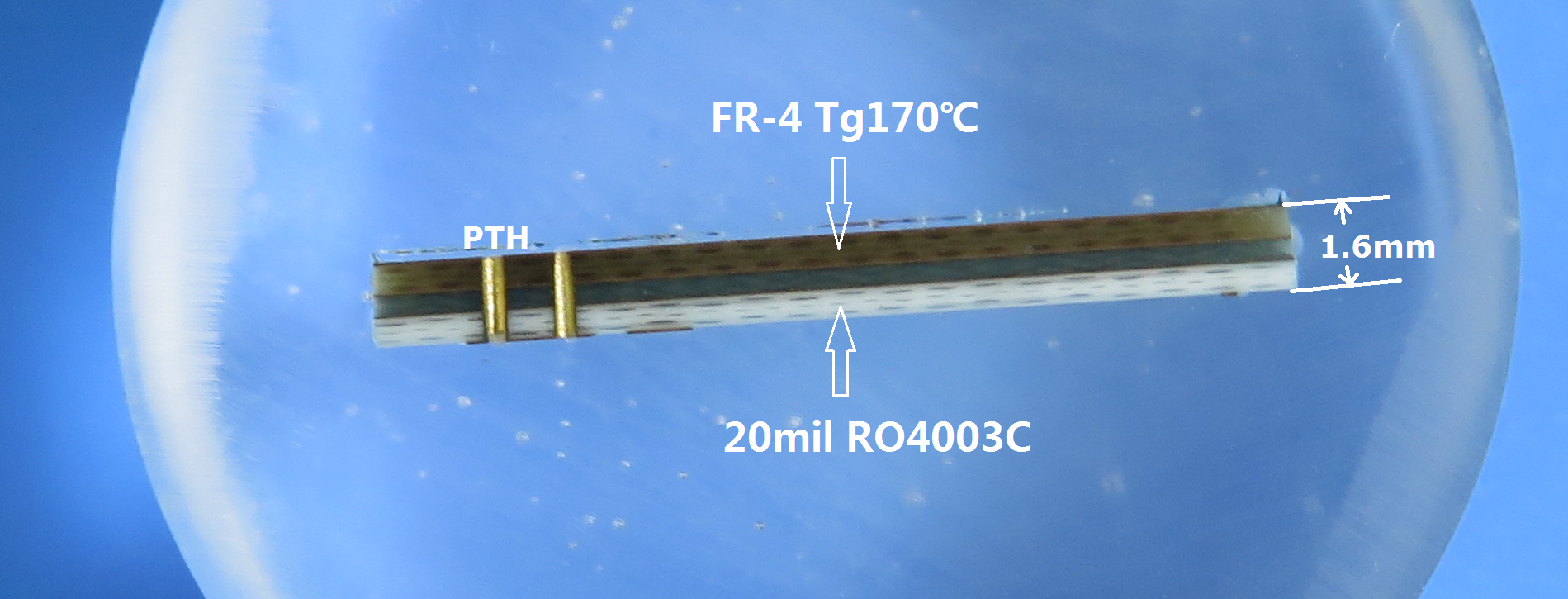

Let's take a look at its microsection chart.

Here on the left is the PTH hole, the bottom is layer 1 to layer 2 which is high frequency material, the upper part is glass fiber material. The finished thickness of the plate is

1.6mm. The color of solder mask and silkscreen are also commonly used in green and white. Surface finish on pads is immersion gold.

PCB Capability

PCB Type:	Hybrid PCB, Mixed PCB
Mixed type:	RO4350B + FR4;
	RO4003C + FR4;
	F4B + FR4;
	RT/duroid5880 + FR4;
	RT/duroid5880 + RO4350B
Solder mask:	Green, Red, Blue, Black, Yellow
Layer count:	4 Layer, 6 Layer, Multilayer
Copper weight:	0.5oz (17 μm), 1oz (35μm), 2oz (70μm)
PCB thickness:	1.0-5.0mm
PCB size:	≤400mm X 500mm
Surface finish:	Bare copper, HASL, ENIG, Immersion tin, OSP

We can provide you with prototype and mass production. If you're interested in hybrid PCB, please feel free to contact us.
