1.6mm F4B High Frequency PCB

WELCOME TO BICHENG

F4B High Frequency PCB on 1.6mm thick with 3oz copper

F4B series high frequency material is mainly PTFE glass fiber cloth and ceramic-filled PTFE glass fiber cloth etc. It is a series of high frequency materials of Chinese brand, which is cheap in price and stable in quality. It's widely applied to navigation, radar, satellite communication, 4G communications, 5G communications and the like.

The main specifications of this board is Double sided board, F4B dk2.65, 210 x 115mm, 1.6mm thick, no solder mask no silkscreen, 3oz, immersion gold.

PCB Specifications

Layer count:	Double sided
Base material:	F4B DK 2.65
Dimension:	210 x 115mm
Finished thickness:	1.6mm ±10%
Finished Copper weight:	3oz
SMOBC:	No solder mask
Surface finish:	Immersion gold

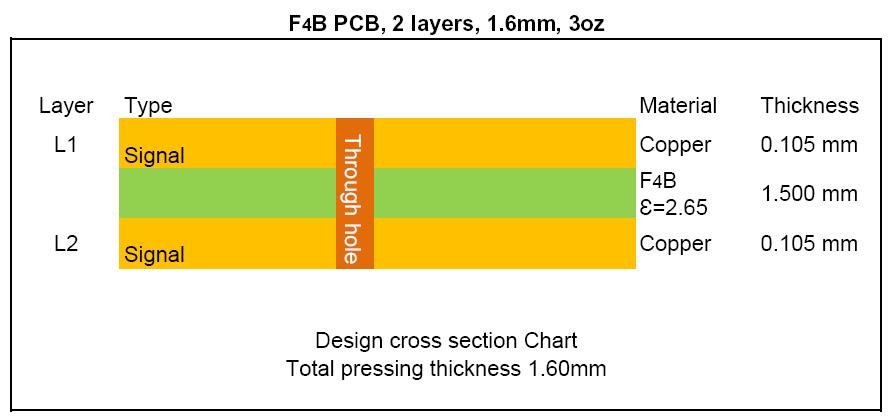

Let’s see its stack up.

Top layer and bottom layer are 3oz copper finished. F4b dielectric material is in the middle of 2 layers copper, showing dielectric constant at 2.65

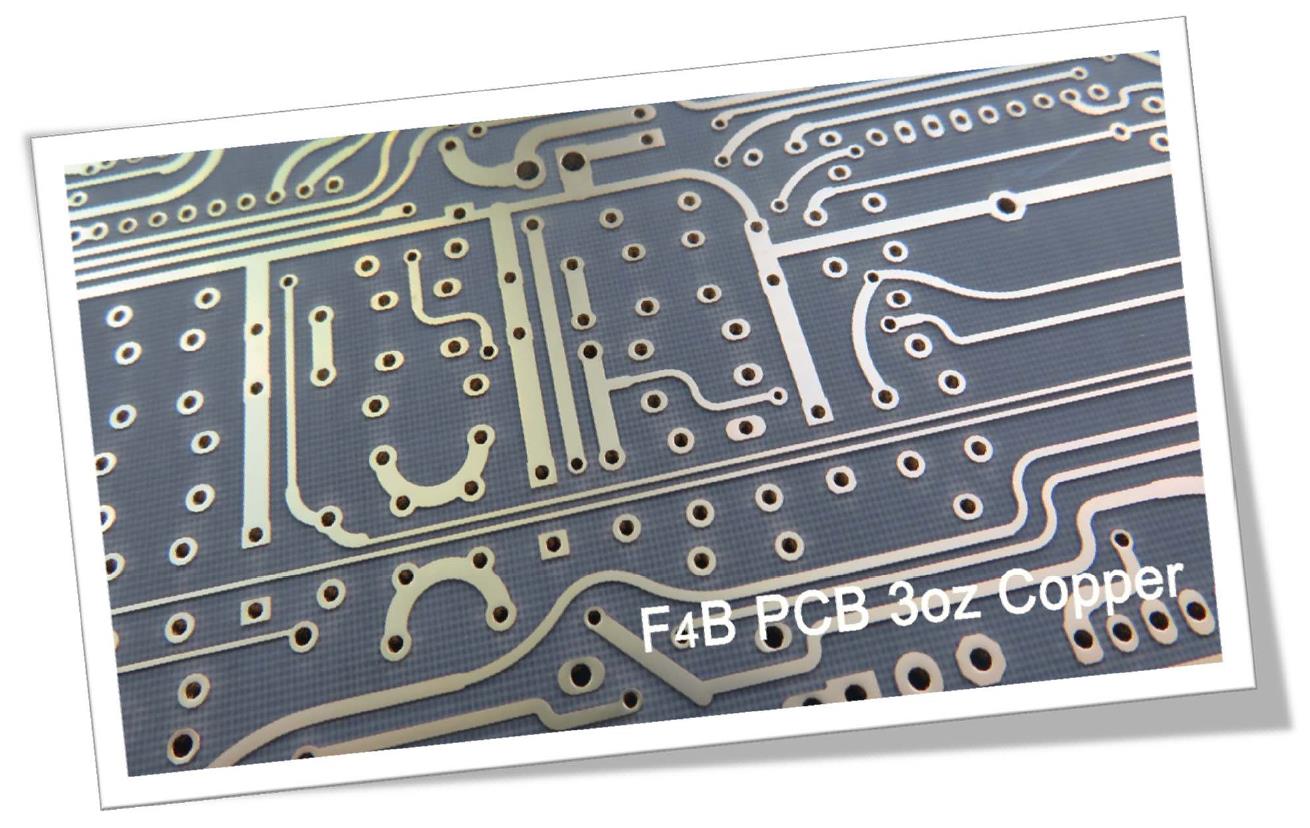

From the photo of this board, the track is thicker than normal boards; surface finish is immersion gold and no solder mask and silkscreen.

The dielectric constant of F4B material is wide, ranging 2.2 to 3.0 etc. Board thickness ranges 0.17mm to 5.0mm. We can provide you with prototype service, small batches and mass production service.

PCB Capability

PCB Material:	PTFE
Designation:	F4B series
Dielectric constant:	2.2, 2.55 and 2.65, 2.17, 2.45, 2.75 and 3.0
Layer count:	1 Layer, 2 Layer, Multilayer, Hybrid type
Copper weight:	0.5oz, 1oz, 2oz, 3oz
PCB thickness:	0.17mm, 0.25mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm and 5.0mm, etc.
PCB Size:	≤400mm X 500mm
Surface finish:	Bare copper, HASL, ENIG, Immersion tin etc.

Should you have any questions, please feel free to contact us.
Thank you for your reading.
